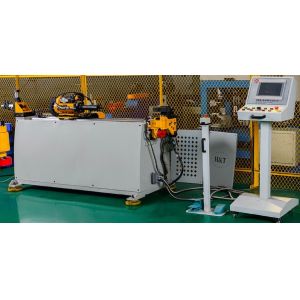

CNC 12RET Right Bending Electric-Pneumatic Multiple Stack Automatic
Tube Bending Machine
| machine characteristics | | main technical parameter | |
| (1) Electical servo bending | Max capacity | round tube/>1.5DR low carbon steel ( S=40kgf/mm ) | 12x2.0t |
| (2) Imported servo motor and reducer | Round tube/non iron metal tube( S=25kgf/mm ) | 10x3.0t |
| (3) Independent R & D software system | Round tube /stainless steel tube( S=60kgf/mm ) | 10x1.0t |
| (4) 1-5 layer die optional | Square tube/Metal Tube( S=40kgf/mm ) | 8x1.0t |
| (5) 11 axis full motor type optional | Round bar( S=40kgf/mm ) | 8 |
| Push-bending type, bending radius7D | Servo bending axis | precision | ±0.05 |
| max speed | 360°/sec |
| Servo material feeding axis | precision | 0.05mm |
| max speed | 2002mm/sec |
| Servo tube rotate axis | precision | ±0.05 |
| max speed | 339°/sec |
Machine characteristics:
1. Upper and lower clamping die design provides maximum bending space
without interference.
2. Modular plugs are used for all circuit signal wires and
electrical assemblies and are numbered for easily replacement and
maintenance
3. With the function of slow retracting, the retracting time is set
according to the program, which can avoid the appearance protrusion
phenomenon caused by the fixed position of tube retracting, so as
to improve the appearance quality of pipe fitting
4. With standard mould guide auxiliary push device, designed with
pressure and speed adjustment knob, it can be easily adjusted and
matched with bending requirements, making high-difficulty bending
work easy
5. For the mandrel and movable slide seat of the pipe clamping
system, the lubrication device with oil hole is installed, which
can set the automatic lubrication cycle in the program, which can
extend the service life of the machine and maintain the stable
performance
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness
equipment,furniture,outdoor equipment,air conditioner,food
machinery,nulcear tube such as reactor,evaporator and heat
exchanger
FAQ
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate
the machine very well?
1) We will provide detailed video and instruction book for this
machine;
2) We also offer training in our factory to all the clients,and we
will arrange everything for you during these days in our city,to
make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable
compoenents with long working life!
And we can also send our technician to do the after-sale service in
client's factory!
4. What kind of solution you can offer to make sure your pipe
bending machine can do our job?
1) We will help you confirm the model of our machine according to
your offered pipe information.
2) Before you start the order for this big value machine,you can
offer your workpiece drawing to us.
We can design the tooling to make your products in our
workshop,after you are sure that the workpiece is good,then we can
confirm the order finally.
3) You can visit us to check how to bend your product before you
start the order.During this period, you can also learn how to use
this machine well!
