    160LPW LED High Bay Lighting HB4 Pluggable Motion Sensor Loop Hanging Ceiling Mounting Wall Mount Pipe Mounting Installa

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-HB240-DG2
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    Price : Negotiated After Inquiry
    • Product Details
    • Company Profile

    160LPW LED High Bay Lighting HB4 Pluggable Motion Sensor Loop Hanging Ceiling Mounting Wall Mount Pipe Mounting Installa

    160LPW LED High Bay Lighting HB4 Pluggable Motion Sensor Loop Hanging Ceiling Mounting Wall Mount Pipe Mounting Installation

    > Factories / Warehouses / Supermarket
    > Exhibitions / Showrooms / Animal Farm
    > Barns and Riding Halls / Logistic Center
    > High Rooms and Halls / Stadium / Chemical Plant
    > Traditional lamp replacement
    Model No.DR-HB100-DGXPDR-HB150-DGXPDR-HB200-DGXPDR-HB240-DGXP
    System Watts/W100W150W200W240W
    System Efficiency/LPW140LPW / 160LPW Optional
    Lumen Output/lm14.000 / 16.000±5%21.000 / 24.000±5%28.000 / 32.000±5%33.600 / 38.400±5%
    Rated Input Voltage/VAC100~277V, 50/60Hz
    LEDs Light SourceSMD2835
    SDCM<5
    CCT/K5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra>70Ra (>80Ra for Option)
    Power Factor>0.95
    THD<10%

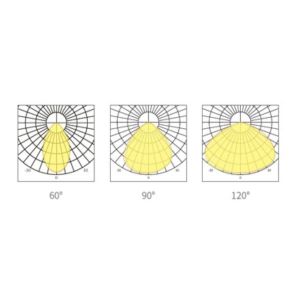

    Beam Angle(Optional)60°/90°/120°
    UGR<25
    Surge Protection3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED DriverDUALRAYS Own-developed High Efficiency Non-isolated Driver
    IP RatingIP65
    Dimming(Optional)0/1-10V/DALI/Zigbee
    Sensor(Optional)Motion Sensor,Daylight Sensor
    Emergency(Optional)Available (30W @ 3Hrs for Standard)
    Protection ClassClassⅠ
    Finishing Color(Optional)Black RAL9017(Standard) / White RAL9016 Optional
    MaterialAluminum+PC
    Lifespan/hrs70.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃- 40°C to + 65°C(-40°F to 149°F)
    Installation(Optional)Loop Hanging, Ceiling Mounting, Wall Mounting
    CertificateCE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


















    Model No.DR-HB100-DGXPDR-HB150-DGXPDR-HB200-DGXPDR-HB240-DGXP
    System Watts/W100W150W200W240W
    System Efficiency/LPW140LPW
    Lumen Output/lm14.000±5%21.000±5%28.000±5%33.600±5%
    Finishing Color(Optional)Black RAL9017 / White RAL9016
    Protection ClassClassⅠ
    LED DriverMeanwell HBG/ELG/HLG,Sosen
    Surge Protection6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
    Rated Input Voltage/VAC100~277V 50/60Hz
    LEDs Light SourceSMD3030
    SDCM<6
    CCT/K3000K/4000K/5000K/5700K/6500K

    > Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;
    > Die-casting Al for excellent heat dissipation;
    > Pluggable built-in radar motion sensor,plug and play;
    > Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
    > IP65 and IK10 for all industrial areas of application;
    > Driver and housing separated by spacers;
    > Adjustable ripple-lens optic with 60°/90°/120° beam angle;
    > D-Mark tested for the use in paper production, wood processing etc;
    > No UV or IR and completely mercury free;
    > L80/B10 @ 50.000h;
    > 5 years warranty;

    Options:
    > Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
    > Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
    > Reflector : PC reflector with / without cover.pipe mounting.
    > Installation: loop hanging, ceiling mounting, wall mounting,
    > Customized supported for special projects.
    > Factories / Warehouses /Workshops
    > Exhibitions & showrooms
    > Barns and riding halls
    > High rooms and halls
    > Traditional lamp replacement

    Character/Power
    100W
    150W
    200W
    240W
    A
    Ø320mm
    Ø320mm
    Ø390mm
    Ø390mm
    B
    200mm
    200mm
    205mm
    205mm
