1µH Unshielded Wirewound High Power Inductor 4A Surface Mounting Ferrite

    Buy cheap 1µH Unshielded Wirewound High Power Inductor 4A Surface Mounting Ferrite from wholesalers

    Buy cheap 1µH Unshielded Wirewound High Power Inductor 4A Surface Mounting Ferrite from wholesalers
    • Buy cheap 1µH Unshielded Wirewound High Power Inductor 4A Surface Mounting Ferrite from wholesalers
    • Buy cheap 1µH Unshielded Wirewound High Power Inductor 4A Surface Mounting Ferrite from wholesalers

    1µH Unshielded Wirewound High Power Inductor 4A Surface Mounting Ferrite

    Ask Lasest Price
    Brand Name : Shareway
    Model Number :
    Certification : RoHS,ISO9001-2001
    Price : Supportive
    Payment Terms : TT,Paypal,West Union
    Supply Ability : 1kk-pcs/month
    Delivery Time : Stock Or 3 weeks
    • Product Details
    • Company Profile

    1µH Unshielded Wirewound High Power Inductor 4A Surface Mounting Ferrite

    SMD Power Inductor 1µH Unshielded Wirewound Inductor 4A


    Description :

    TypeWirewound
    Material - CoreFerrite
    Inductance1µH
    Tolerance±20%
    Current Rating (Amps)4A
    Current - Saturation5.72A
    ShieldingUnshielded
    DC Resistance (DCR)49 mOhm Max
    Q @ Freq-
    Frequency - Self Resonant110MHz
    RatingsAEC-Q200
    Operating Temperature-40°C ~ 125°C
    Inductance Frequency - Test10kHz
    Mounting TypeSurface Mount
    Package / CaseNonstandard
    Supplier Device Package4532
    Size / Dimension0.177" L x 0.157" W (4.50mm x 4.00mm)
    Height - Seated (Max)0.138" (3.50mm)

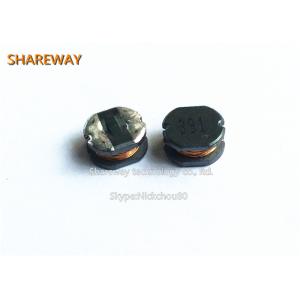

    Product picture:
