T- TPL Series Turbine Blade For Diesel Marine Engine And Gas Engines

T- TPL Series Turbine Blade For Diesel Marine Engine And Gas Engines

T- TPL series exhaust gas turbocharger is devided to T- TPL-A Series and T- TPL-B Series. Their features are as below:

T- TPL-A series turbocharger design features:

• The T- TPL-A series turbocharger is for large medium-speed diesel and gas engines with a power output range ​​from2,500kW ​​to ​12,500kW.
• Turbine: The T- TPL-A turbocharger is axial turbine for high efficiencies and high volume flow rates.
• Compressor: The T- TPL-A compressors ensure the high volume flow rates which allow optimized matching to different engine applications. Its single-piece, splitter-bladed aluminum alloy wheels with backswept blades ensure high efficiencies and wide compressor maps. its pressure ratio is from 4.2 up to 5.0 based on different design.
• Bearing: The T- TPL-A bearing assembly lubricated directly by the engine lube oil system, plain bearings can run up to 36,000 hours before being oveT- T- RHauled.
• Casing: The T- TPL-A casings is optimized for 4-stroke engines application, include integrated waste gate flanges, temperature and pressure measurement connections. All-round insulation minimizes the turbocharger noise level and casing surface temperature.
• It's widely used on diesel marine engine as well as gas engines.

T- TPL-B series turbocharger design features:

• T- TPL-B series turbocharger is designed primarily for large two-stroke marine diesel engines.
• These turbochargers are simple, rugged and compact to keep your running cost low. Five frames cover an engine output range of 3,000kW to 28,000kW.
• Turbine: The T- TPL-B turbocharger is axial turbine for very high efficiencies and high volume flow rates by the 2-stroke diesel engine market.
• Compressor: The T- TPL-B comressors ensure the high volume flow rates which allow optimized matching to different engine applications. Its single-piece, splitter-bladed aluminum alloy wheels with backswept blades ensure a wide compressor map and peak efficiencies of more than 86%. its pressure ratio is up to 4.5.
• Bearing: The T- TPL-B bearing assembly lubricated directly by the engine lube oil system, plain bearings are designed to run up to 36,000 hours before being exchanged. The radial bearing bushes are fixed with screws and centered in a squeeze oil film damper.
• Casing: The T- TPL-B casings are optimized for 2-stroke engines. Features include integrated washing device, temperature and pressure measurement. The T- TPL-B casing is insulated to make the turbocharger noise level and casing surface temperature as low as possible.
• Emergency lube oil systme: it ensures safe running of the T- TPL85-B and T- TPL91-B turbocharger rotor.

T- TPL turbocharger types include:

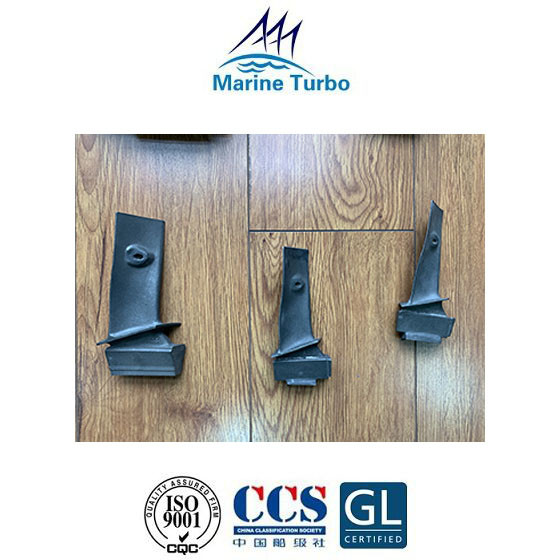

T- TPL series turbine blade pictures:

Description of turbine blade:

Turbine blades that rotate at high speed are responsible for drawing high temperature and high pressure air into the combustor so that to maintain the engine's operation. In order to ensure long-term stability in extreme environments of high temperature and high pressure, turbine blades are often forged with high-temperature alloys and used in different ways to cool, for example, internal airflow cooling, boundary layer cooling, or thermal barrier coatings that protect the blades, to guarantee the reliability of turbine blades during turbocharger's operation.

Marine Turbo factory, founded in 1999, is a professional ufacturer for marine turbocharger replacement spare parts and components.

The Marine Turbo workshop, occupying more than 18,000 square meters, is located in Yangtze river delta region which is close to the international metropolis, Shanghai China. The company owns more than 100 units of ufacturing equipment and testing instruments, such as CAD, precision casting production line, four axis and five axis machining center, three coordinate measuring instrument, CNC lathe milling machine, metal cutting equipment with nondestructive flaw detection, etc.

With the advanced mechanical processing technology, Marine Turbo is fully in accordance with the strictly production process control method of military products to age the production line in the workshop in order to ufacture the high quality of turbocharger replacement parts. In the mean time, Marine Turbo factory introduce and absorb the latest technology at home and abroad that the factory independently develops the various types of turbocharger components and which are applied for engineering machinery and marine auxiliary machinery, such as the turbine blades, turbine shaft, compressor impeller, diffuser, oil pump, nozzle, etc.

The Company has also supplied nearly hundred kinds of engine parts for US client's yatchs production, and several creative technologies have been recorded in our domestic marine ufacturing industry.

In order to provide the reliable products, the company has passed the ISO9000 Quality agement System certificate in 2001, and also some of the products are certificated by CCS (China Classification Society Certification) and RINA Certificate.

Satisfying customers with supreme quality and reliable services for marine turbocharger replacement parts is the aim across the whole Marine Turbo company.

Marine Turbo Keep a Large Inventory for Quick Delivery

Marine Turbo has more than hundres of types of replacement parts for customers to choose quickly. Among them, 90% of the product models Marine Turbo has the inventory, can meet the turbocharger oveT- RHauling, maintenance and repair needs for various brands with a quick response and reasonable price.

According to the feedback and sales situation of customers seasonally and yearly, our company analyzes and make the turbocharger replacement parts’ production plan, in order that our company can keep the inventory for common spare parts all the time, while as for some non-common parts, we will keep the long-term inventory of semi-finished products.

The purpose to build our large inventory is to save time for customers’ waiting for repairing spare parts as much as possible, so that to help customers resume operations as soon as possible, and ultimately improve the effectiveness of competition.

We recommend that customers can make the plans to establish a small stock for your own to minimize the time lost as much as possible.

Marine Turbo look for the professional local distributor for turbocharger replacement parts around each country of the world.

Marine Turbo products has sold to all over the world. From the feedback from various places, we have been highly recognized for the quality of our products and delivery time. However, in order to better serve the local market, we are looking for professional turbochargers aftermarket parts distributors in different countries of the world, so as to establish a local inventory chain through cooperation and assessment for a certain period of time.
The aim to build local chain is to enable end users to shorten the waiting time for the turbocharger spare parts as much as possible, then to save costs and improve the market competition effectiveness for end users.
