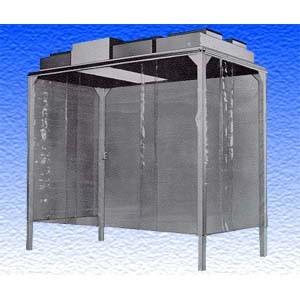

Vinyl Strip Curatins Laminar Air Flow Clean Shed With H14 HEPA Filters

Vinyl Strip Curatins laminar flow Clean Shed With H14 HEPA Filter

Quickly detail

External size : 3000x2000x2596mm
Internal Size: 2900x1900x2205mm
Purification rank: Class1000
HEPA filter efficiency: 99.999%@0.3um
Laminar flow: vertical
Air speed :0.3-0.6m/s
Power: 220V/50HZ or 110V/60HZ

Introduction :

Operating features:

1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated

steel panels.

2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with

an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending

ceiling supports

3: The PVC anti-static curtain door allowing for easy passage of material and personnel in and

out of the clean area. The curtain terminated at a specific distance above the floor to allow

for exhaust of clean air out of the clean room.

4: Control box can rapid start up the fan filter unit and lighting.

5: Fan filter unit is the energy efficient external rotor motor design reduces operating

costs and has extremely low noise and vibration levels, improving the working conditions

in the clean room.

6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation

technique to maximize surface area improves efficiency and extends the filter life.

Technical Parameter:

Products Parameter:

Customer’s design is available.

Our Service:

1: Document

A: Document for custom clear: 1 sets

B: Assemble draw: 1 pcs

C: Circuit diagram draw: 1 pcs

D: Test report : 1sets

E: Additional IQ/OQ/PQ document is available upon request.
