    Professional Overhead Transmission Steel Tubular Pole For Electrical Power

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

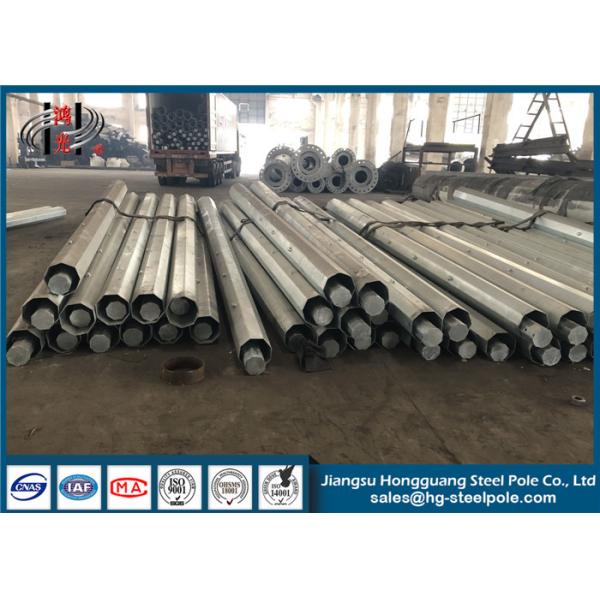

    Professional Overhead Transmission Steel Tubular Pole For Electrical Power

    220KV Q345 Anti-corrosive Steel Tubular Pole Overhead Transmission Electrical Power Pole

    Product Description:

    Round tapered(conical) street light poles are most widely used worldwide in street lighting. By utilizing a wide range of advanced equipments, Shuguang design and manufacture steel round tapered poles and brackets in various patterns to conform to variety of requirements from our customers all over the world.


    Our round tapered poles are available in mounting height from 3 to 14m(one piece joint),two moulds are available with us: one taper is 11/‰,the other 14/‰,poles of taper 10-15‰ can be made. The poles can be used for post top or bracket arm applications. Integral bracket arm arrangements are also available.

    Product Specification:

    Products
    • 220KV Q345 Anti-corrosive Steel Tubular Pole Overhead Transmission Electrical Power Pole
    Application
    • Power transmission and distribution Line
    Voltage Grade
    • 10~500KV
    Once Forming
    • 16m Once forming without joint
    Shape
    • Round / polygonal / Conical / Tubular
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Joint
    • Joint with insert mode, flange mode.

    Painting

    • According to clients' request

    Galvanization

    • 15m steel pole is hot dip galvanized in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Product Advantages:

    1).Short Construction Cycle
    2).Low Overall Cost
    3).Easy Installation and Maintenance
    4).Weather Resistance
    5).Anti-corrosion
    6).More than 15 Years Design & Manufacture Experience
    7).Capable to Handle Volume Orders
    8).Provide Professional Design by Our Experienced R&D Engineers
    9).Rich Exporting Experience
    10).ODM, OEM Acceptable
    11).Technical Support by E-mail



    Standard Accessories:

    - Top Cap
    - Butt Plate
    - Standard hole on X-X , Y-Y , Z-Z.
    - Grounding Nuts & Bolts


    Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT


    Height

    (ft)

    Thickness

    (mm)

    Butt Diameter

    (mm)

    Tip Diameter

    (mm)

    Design Load

    (kg)

    Yield Stress

    (MPA)

    Zinc Coating

    (microns)

    252.515212030034586
    303.022612750034586
    353.024812750034586
    403.031712750034586
    453.032812750034586

    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.
    * The Loading Pcs of Each Container could be calculated according to client's specification and data.

    Terms and Conditions:

    1. Price Term: EXW, FOB, CFR or CIF.

    Ø EXW: Poles Cost

    Ø FOB : Pole Cost + Land Transportation + Fee on Port

    Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight

    Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

    2. MOQ: One 40FT Container.

    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment.

    Other payment way can be negotiated.

    4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

    5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
