| Brand Name : | Schneider |
| Model Number : | TSX3722001 |
| Certification : | CE |
| Price : | 1-1000USD/pc |
| Payment Terms : | T/T, Western Union,Paypal |
| Supply Ability : | 10 pcs/month |
| Delivery Time : | 2-3 working days |
| MOQ : | 1 PIECE |

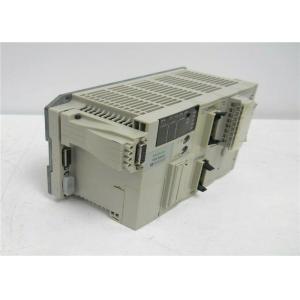

Schneider Electric TSX3722001 TSX Micro 37 21 22 PLC configurations
| range of product | Modicon TSX Micro automation platform | |
|---|---|---|
| product or component type | Modular base controller | |
| primary voltage | 100...240 V 90…264 V AC | |
| input current | 2 mA 60 A | |
| immunity to microbreaks | 20 ms | |
| output current | 0.5 A |
| number of slots | 3 | |
|---|---|---|
| analogue input type | 0...10 V 8 | |
| analogue output type | 0...10 V 1 | |
| counting input type | Discrete incremental counter 1 10 Hz Incremental 1 10 Hz | |
| integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s | |
| realtime clock | With | |
| memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage | |
| maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words | |
| execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card | |
| execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card | |
| application structure | 1 fast task 16 event tasks 1 master task | |
| system overhead | 2.3 ms for master task | |
| protection type | Overload protection Short-circuit | |
| network frequency | 50...60 Hz | |
| total useful secondary power | 24 W | |
| electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
| ambient air temperature for operation | 0…60 °C | |
|---|---|---|
| ambient air temperature for storage | -25…70 °C | |
| relative humidity | 10…95 % without condensation for operation 5…95 % without condensation for operation | |
| operating altitude | 0...2000 m | |
| width | 341.4 mm | |
| height | 151 mm | |
| depth | 152 mm | |
| net weight | 1.75 kg |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Not applicable, out of EU RoHS legal scope | |
| China RoHS Regulation | ||
| WEEE | The product must be disposed on European Union markets following
specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
