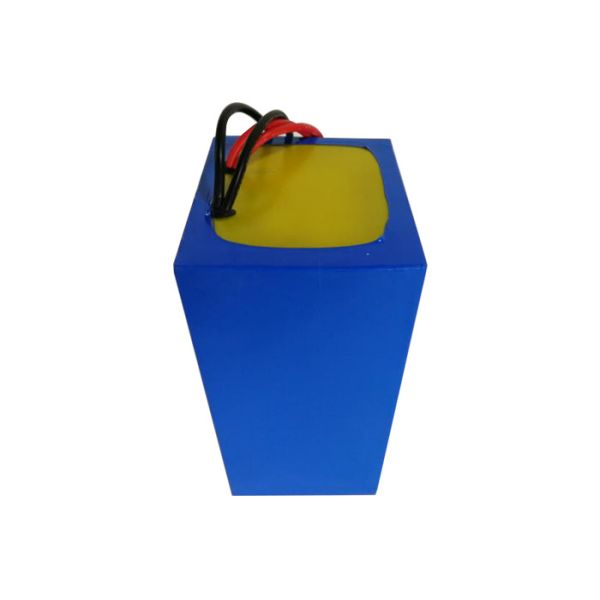

Lightweight Industrial Lithium Batteries 60V 37AH With Overcharge
Protection
Model: 60V/37AH
Specification: 148mm*160mm*270mm
Parameters: working temperature -20°C-60°C, ternary lithium battery
17S, continuous working current 32A, maximum working current 50A,
8A charging, charging upper limit 71.4V, discharge cutoff 47.6V,
epoxy resin board packaging, optional sheet metal , plastic case,
aluminum alloy and other shell packaging status, weight 11.5KG.
Lithium battery protection Short circuit protection, overcharge
protection, overdischarge protection, overcurrent protection,
temperature protection application area Industrial machinery and
equipment, UPS system
Features& Advantage:
1. Safety: scooter battery, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: 3C discharge Rate Cell, 30A BMS
4. Long life cycle, after 500 cycles, residual capacity is over 80%
of its original
5. No memory effect,highly efficient charge anytime
6. Wide Operation temperature: -10~55°C
7. Small size and light weight
8. Low self-discharge rate: < 3% monthly
9. With single package, clear warning mark, logo. colorful printed
instruction Manual
| | Number | HY00067 |
| Version | A0 |
HYLF/60/37-001 Battery pack specification | Date | 2019-5-7 |
| 1．Basic characteristics | Product picture |
Product name | Industrial lithium battery | Batteries:-3.6V37AHTernary lithium polymer battery -3.6V37AH
Shell material: epoxy resin board packaging, optional sheet metal,
plastic shell, aluminum alloy, etc.
|
product code | HYLF/60/37-001 |
| L x W x H | 148mm*160mm*270mm |
| Rated voltage | 60VSeries structure |
| Rated Capacity | 37Ah |
| Serialization | 17S |
Internal resistance | ≤100mΩ |
| Discharge cutoff voltage | 47.6V | Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White
☑ Blue thermoplastic film
Charging and discharging interface □ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole
□ Hardware contact
|
| Charging protection voltage | 71.4V |
Max.charging voltage | 72.25V |
Max. charging current | 8A |
Maximum discharge current | 50A |
Peak current | 80±5A 2S |
Rated discharge current | 32A |
| Charging method | CC/CV |
Different temperature discharge curves:
|
weight | 11.5Kg |
Operating temperature
| Charging | 0～45℃ |
Discharge | -20～55℃ |
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to
recharge every 2 months |
-10～35℃ |
C1 Cycle life Cycle life | 1500 Times |
| price | RMB:¥ 00.00 |
Delivery period | 25 Working day |
