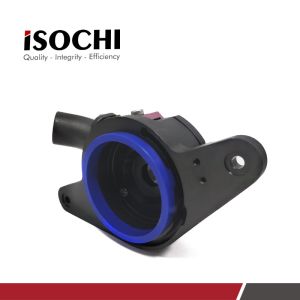

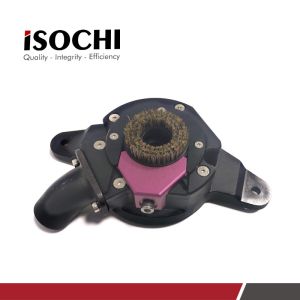

AEMG Anderson Pressure Foot Cup High Precision Customized Available

1.Discribtion:

The pressure foot cup is an indispensable device to achieve efficient vacuum suction of the pressure foot and high-quality drilling, and also plays a key role in drilling quality.

PCB numerical control drilling machine as an important equipment in printed circuit board processing, its processing quality has a great impact on the performance of electronic products. Its suck

The combined structure of chip cover and pressure foot is one of the main factors affecting the quality of hole processing. Excellent design and combination of the combined structure of the suction hood and the pressure foot

3.Details pictures:

Technique picture:

Form and material of pressure foot:

The main function of the pressure foot is to compact the workpiece system. Through its slotted ventilation structure, it provides air supplement for the vacuum system, forms a better convection system, and has a larger buffer effect. Different brands of mechanical drilling design manufacturers based on different considerations, the material of the pressure foot is metal materials and non-metal materials. Metal materials are mainly stainless steel (usually SUS304) and brass materials (C3604BD, equivalent to HPb59-1). Non-metal materials are mainly PA66, PA6, POM and PU. The main considerations for the use of metal materials are relatively high hardness, wear resistance, and long service life (normally 8-10 months can be used); the disadvantage is that the buffer effect is not obvious, and it has not stabilized for a long time.

4.Raw material selection:

Aluminum

(1) Light weight, good rigidity and high strength

(2) Good fire resistance

(3) Easy to recycle, pollution-free, environmentally friendly.

Demarcated customized service process:

Provide drawings / samples and quantity - quote- contract- produce- surface treatment - precision measurement - finished product packaging - pre shipment inspection - shipment

5.About delivery:
Common products are delivered within 3 days and will be shipped in the order they are ordered. Negotiable if urgent.
About packaging:
Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.
About after sales:
If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.

Kunshan Sochi Electronics Co., Ltd. is a diversified service company integrating production and trade.

Our main service targets are automotive electronics, semiconductor and PCB industry customers,such as TTM,APEX,ATS.

20 years of production experience in the PCB industry of us could offer better service for you.

The main products

1-PCB equipment;

2-PCB CNC drilling machine and milling machine parts;

3-repair and maintenance of drilling /molding machine;

4-maintenance of spindle and various chip boards;

5-production and processing of automobile molds and parts.

Technical team of excellence, advanced CNC processing equipment,

testing equipment to ensure that our product quality meets and meets customer requirements.
