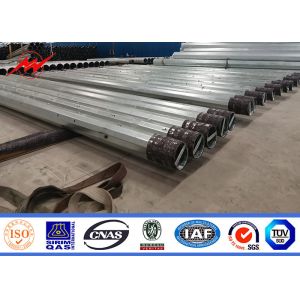

60ft Type Hs Ht Ngcp Standard Galvanized Steel Pole With 4-5mm Thickenss

60FT TYPE HS HT NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss

Description

1. Top diameter:190mm
2. Bottom diameter:350mm
3. Thickness:4mm 5mm
4. Material:Low alloy steel,yield strength not less than 345mpa(GB/T1591-2008standard)
C≤0.20,Mn≤1.70,Si≤0.50,P≤0.50,S≤0.0345
5. Marks:Nane plate through rivert or glue ,engrave ,emboss as per customer requirement
6. Welding :We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Penetration :100%

Company Manufacture Ability

• 2500t Brake Press (capacity to press poles with wall thicknesses up to 30mm)

• Automatic Plasma cutting, Flame cutting, Seam welding and Flange welding machines

• Straightening machines

• CNC Punching machines

• Capacity to produce poles with diameters ranging from 60mm to greater than 3000mm

• Capacity to produce poles in heights from 3m to greater than 75m

• Capable of producing poles for any requirement from small distribution poles to large transmission poles

Advantage

Excellent performance:
Because of the long and thin shape,closed polygonal section and apply of high strength steel material,these steel poles have excellent durability.they can withstand the extreme condition,such as the frost climate,unbalanced loads, or breaking of wire.

Installation
The designing weight of the steel poles are usually relatively light ,and is good for the operation,transportation,assemble and installation.

Environment
Since the long and thin straight line shape.the steel pole from Milkyway Steel Poles are easily intergrated into the landscape.At the protected areas(mountains),the installation of steel pole will not influence the aesthetic solution of the scenic spot.

Maintenance
The hot dip galvanization trearment can increase the service life of the steel polewithout the environmental pollution and no need for other daily maintance.The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.

Production
our steel pole is bend to form to the polygonal(conical) section firstly.Then it is welded by the automatic submerged-arc welding machine.Thirdly the top cap,strip and base plate will be welded to the pole.And finally other accessories (support brackets ,ladder support,etc.)will be welded to the pole shaft.

Galvanization
The galvanization of the steel pole are under strict control.galvanization is achieved by immersion in a molten zinc bath(450°) after pre-treated(dipping)

Installation

1. Remove all the equipment on the pole during Assembly.
2. Circle a sling around th epole shaft of each section.
3. Fix the sling on top section to one pulley block.
4. The sling on the bottom section is tightly fixed and fixed at the center of gravity.
5. Make the steel pole vertical by tighten the sling of the top section.
6. Fix the steel pole.
7. Remove the sling.

Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.

Estbilsed  in 1989,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan  in  1991 of 132 KV transmission poels ,our products have been deliveried  to more than 70 contries and areas ,including America,Australia ,Russia  ,Genmery ,Span,Philippines ,Malaysia and so on

To assure our products qualified ,we take steps as follows :

1. Management  team : We have employ the foreign export  to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2. Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3. Lofting and design software :We have  transmisson power pole design software which can help us design all kinds of steel pole  ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly .

4. QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment .

We are always persisting in horzontal cooperation with domestic senior project institute and technical colleges .The enterprise also has an highly qualified team working at R&D ,manufacure ,QC ,aftersales service and other important positions .
