mini industrial linear actuator 12volt with gear box 200mm stroke
800n force, ip65
What is a Linear Actuator?
In simple terms, a linear actuator is a mechanical device that
creates motion in a linear, or straight, line.
This varies significantly from the circular motion that is created
by conventional motors, thus making the linear actuator unique in
its operation.
Different range of Linear Actuator in our company:
- Industrial Linear Actuator
- Furniture Linear Actuator
- Solar Tracker Linear Actuator
We discuss about industrial linear actuator now, different
applications have different requirements on the load, voltage,
stroke...
we have mini industrial linear actuator and high force linear
actuator can meet your requirements.
If you need source other types of actuator from the market, we also
can help you!
There are many factors to consider when selecting a linear actuator
for an application need.
Some of these important parameters are mentioned below:
- Stroke length (travel length)
- Installation length
- Mounting requirements
- Feedback(Hall sensor/Magnetic reed switch)
- Motor voltage
- Dynamic load
- Static load
- Speed
- Precision
- Others

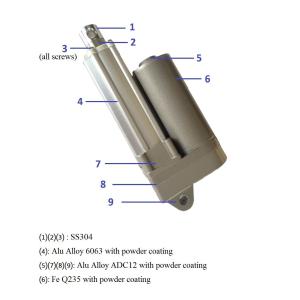

Specification of Mini Industrial Linear Actuator:
- Housing material: Aluminum
- Motor Type: Permanent magnet brushed DC motor
- Input voltage: 12V/24V/36V/48V
- Drive system type: Gear
- Nut material: POM /Brass
- Rated load: 2000N
- Max stroke: 600mm
- Feedback signal: Optional (potentiometer)
- Finish: Power Coated
- Duty cycle: 25%
- Limit switches: Built-in
Dimension of Mini Industrial Linear Actuator
L.min means the length when linear actuator 100% fully retracts,
meanwhile, it will touch the tail limited switch, stop
automatically, very safe.
Stroke means the movement length of linear actuator.
L.max means the length when linear actuator 100% fully extends,
meanwhile, it will touch the head limited switch, stop
automatically, very safe.
Dimension of Standard Mini Industrial Linear Actuator
| Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | Without Feedback |
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 165 | 215 | 265 | 315 | 365 | 445 | 495 | 545 | 595 |
| Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | With Hall sensors |
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 165 | 215 | 265 | 315 | 365 | 445 | 495 | 545 | 595 |
Newton (N) to Pound (lbs)
| Newton | 2500 | 2000 | 1600 | 1200N | 1000N | 800N | 500N | 200N | 100N |
| LBS | 550 | 440 | 350 | 264 | 220 | 176 | 110 | 44 | 22 |
Application of industrial linear actuator
- Sectors of automotive
- Food & beverage manufacturing
- Pharmaceutical manufacturing
- Aerospace
- Defense industry
- Water & wastewater management
- Construction machine
- Cleaning equipments
