HD Waterproof Smart LED Video Wall Display P6.66 Rgb Led Module For
Rental
1. Unique cabinet design, simple but strong, and lightweight, can
be used for different installations.
2. IP65 waterproof for cabinet both sides and power&signal
connectors, can adapt to the different outdoor environments.
3. SMD3535 for outdoor usage high brightness with a big viewing
angle for different outdoor rental statuses.
4. Black body LED lamp and Black epoxy protection, good looking for
screen surface when it is a turn-off.
5. Cabinet structure allows airflow, natural cooling, fanless
design, and noiseless, IP65 protection grade,24 hours working.
6. High brightness, good display result even sunshine on the screen
directly.
7. Good effect in dispelling the shadow of led pearl, high refresh
rate 1200HZ-1500HZ, energy saving
Technical parameter :
| pixel Pitch | 6.67mm |
| Working Voltage | AC110 or 220V±10% |
| Power Consumption | Max 780W/sqm
Average270W/sqm |
| LED Brand | Epistar LED Chips |
| Maximum Brightness | >7000cd/m² |
| Pixel Configuration | 1RGB |
| Module Resolution | 48*24dots |
| Pixel Density | 22500Pixels/m² |
| Drive Mode | 1/6 Scanning |
| Grade Level | RGB 8192 grade/each |
| Best Viewing Distance | >6.67m |
| Viewing Angle | Horizontally >160° / Vertically >140° |
| Screen Lifetime | ≥ 100,000 hours |
| Driving IC | ICN2026 |
| Refresh Frequency | ≥1500HZ/s |
| Change Frame Frequency | ≥ 60Hz |
| Protection Level | IP65 |
| Control System ¹ | Simple LED Video Control System
or Advanced LED Video Processor |
| Ambient Temperature | -10°C ~ +45°C |
| Relative Humidity | 10%~90% |
| Screen Weight | 13Kg/cabinet |
| Input Signal | RF S-Video RGB RGBHV YUVYC, etc. |
| Brightness Adjustment ² | 256 levels of each color (RGB) can be adjusted manually and
8 levels of each color can be adjusted automatically. |
| LED Module Size | 320mm x 160mm |
---Pictures of P6.67 Led moduels
1. The first-level LED chip from Taiwan Epistar.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.

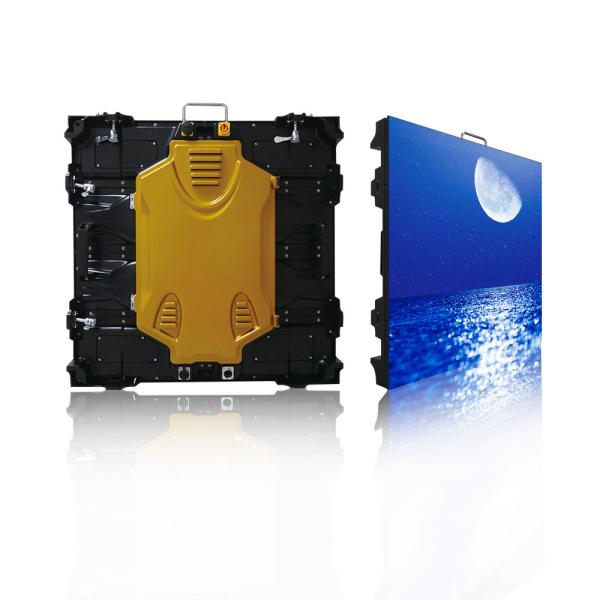

Pictures of P6.66 Led display, cabinet size 640*640mm
Packaging & Shipping
---P6.67 Die-casting cabinet, flight case packaging is recommended
for easy and quick installation and de-installation.
---Honeycomb carton is recommended for fixed installation to save
cost.
Answer: To put it simply, a module is an integrated board of led
lamps, driving ICs. circuit and so on, A certain amount of modules
assembled together make a display screen Elements on the surface of
a module are called Pixels.
The distance between neighboring pixels is called pixel pitch.
2. What does P3, P4, P5, ETC. Stand for?
Answer: P3 means the pixel pitch of the modules is 3mm, p4, 4mm,
and p5, 5mm.
3. I want a screen 4m(w)*3m(h). Can you make it exactly the same?
Answer: It's easier for us to make the screen size similar to your
requirement. However, we also offer custom service but there would
be an extra charge.
4. Why do you want to know all the details to give me a complete
price list?
Answer: The price of the led display screen is determined by some
basic details such as screen size, power supply, cabinet, and
control system. etc. the more we know, the more accurate the price
is.
5. Which controlling system do I need. asynchronous or synchronous?
Answer: Non- synchronous control system is used when you want the
screen to display content automatically without being connected to
a computer, the content to be displayed is edited with a computer
and will be sent to the controlling cards on the screen and be
stored there. Note that it's not a wise choice for displaying
videos.
The synchronous control system is used when you want the content to
be displayed to synchronize with your computer, Data are edited and
stored in the computer so the screen has to be connected all the
time, It is the right choice for rental screens. video displays.
stadium screens and cinemas etc.
