High Resolution Optical Measuring Devices Multiple Function With
Linear Guides
Mechanism and Application Characteristics of Coordinate measuring
machine:

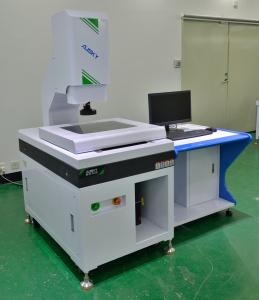

1. Construction of the instrument:
Designed with workbench of a marble panel base and gantry
mechanism, the instrument is characterized by steady accuracy, good
adaptability to working environment, simple, strong, non-deformable
and good-looking body structure, and ergonomically designed
operating mechanism, and meanwhile is equipped with powerful
measuring software and is easy to operate.
2. Merits with auto-measuring instrument:
This instrument can avoid human error of the “Object Work Piece” as
caused by manual measuring, and can as well avoid secondary damage
caused to “Object Work Piece” by manual measuring, with ensured
mass stability and criteria consistency of the object work piece.
This instrument can enhance multi-fold the detecting efficiency in
the production process, identify the defects and control over
non-yields beforehand in production process, and can meanwhile help
lower part of the costs spent on manual detection, and increase the
timeliness of product delivery.
3. Applicable scope:
This measuring instrument can be used for dimensional accuracy
measurement of various Aerospace, automobile and ship, scientific
research and teaching, electronics, hardware and plastic, precision
metal stamping plate, screen printing plate, acrylic plate, LCP
film, PCB board, LCDTFT, glass cover plate, TP, frame of
ultra-large LCD, die cutting, backlight module group, as well as
for auxiliary measurements such as reverse engineering graphic R &
D, design, drawing editing, laboratory inspection, etc.
4. Main functional configurations of instrument:
This instrument is used in with AUSKY professional automatic
measurement software, Aotian special controller,MEAN WELL power
supply, Panasonic servo motor drive system, TEO color 650TV CCD,
PMS high resolution of 0.7–4.5 folds special high-definition Auto
zoom and fixed-focus screen optical lens, LED partition
program-controlled light source, import precision Nidec patch
grating system, Lenovo computer,LCD monitor,keyboard, mouse, and
the digital measurement.
5. Saving cost:
This instrument can achieve multiple functions on the same set of
equipment, resulting in saved user costs for repeated purchasing of
measurement devices as well as saved labor costs and equipment
occupation space. It can meet the needs of user enterprises for
greater development in the future and the demand for rapid
expansion of product testing to lay sound foundation for users’
quality assurance.
Technical parameters
Paramter and Model | AMP-320 |
Workbench | Platfom size(mm) | 600X400 |
Glass table size(mm) | 350X250 |
Load-bearing weight(kg) | 30 |
Travel | X axis(mm) | 300 |
Y axis(mm) | 200 |
Z axis(mm) | 200 |
Image and measurement system | Display resolution(mm) | 1/0.5(Optional) |
Instrument precision(um) | (3+L/200)um |
Imaging system(CCD) | TEO HD color |
Zoom objective(X) | High percision automatic zoom lens program control |
Total video magnification(x) | 30-200X |
Working distance(mm) | 96mm |
Light source | LED programmable partiton light source(Coaxial light source
optional) |
Outline dimension(mm) | 840X600X1765 |
Weight(kg) | 650 |
Power supply | 220V AC 50HZ |
Configuration List:
Sequence number | Name | Unit | Quantity |
1 | Main body | PCS | 1 |
2 | Instrument table | PCS | 1 |
3 | AUSKY software | PCS | 1 |
4 | video card | PCS | 1 |
5 | Joystick | PCS | 1 |
6 | Dongle | PCS | 1 |
7 | Computer | PCS | 1 |
8 | Liquid crystal display | PCS | 1 |
9 | Aocheng optical calibration block | PCS | 1 |
10 | Precision probe(optional) | PCS | 1 |
11 | Keyboard and mouse | PCS | 1 |
12 | Specification warranty card certificate | PCS | 1 |
Introduction to the software functions:
A. Map navigation, scanning and contour tracking software provides
powerful navigation functions
Can scan whole map by assigning a starting point and finishing
point, and can also import the pictures taken by external
sensors for navigation; The scanning function can be used in
reversing function, can designate starting point and
finishing point of the scanning, and special design algorithm;
allow to increase scanning accuracy and practicality
through filtering impurities; allow to track open or closed
graphics to have contour tracking, so as to obtain desired
contour. Can set number of scanning point, on contour, and software
can automatically calculate scanning spacing.
B. Powerful tagging function
Available in multiple tagging types, for example, tagging of
Distance, Angle, X Distance, Y Distance, Radius, Diameter,
Arc Length, and etc., allows to change position after tagging is
finished, as well as to automatically tag user, that will
remain after program is over.
C. Probe measuring
Powerful functions of software probe measuring enable to character
2D & 3D elements such as height, plane, cylinder,
cone, sphere, ring, etc., and support multiple methods for
establishing 3D coordinates system, with rapid and efficient
programming.
D. Composite measuring of probe and image
Composite measuring by complementing probe with image optical
system achieves multi-purpose measuring of image
and probe.
