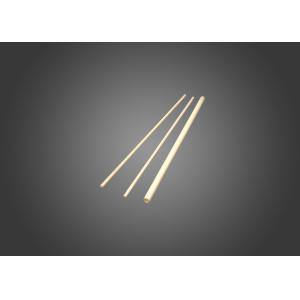

99 % Al2o3 Advanced Technical Ceramics , Alumina Ceramic Components Porous Filter Tube

99 % al2o3 alumina ceramic material and ceramic filter tube porous

Product Description

Alumina ceramics are the most versatile of the advanced technical ceramics stronger than the traditional ceramics chemically inert - excellent corrosion resistance outstanding electrical insulators, even at very high temperatures extremely hard - excellent abrasion resistance are almost unaltered at 1000°C useable up to 1700° All alumina bodies possess very good mechanical properties such as hardness and compressive strength. They also hold up well under harsh conditions such as acid corrosion, high wear areas, and sliding abrasion. They also possess very good electrical insulation properties and have very specific thermal conductive and thermal expansion rates.

95%/99%/99.7% AI203 Ceramic Material Parameters

Item Test Condition 95% AI203 99% AI203 99.7% AI203

Bulk Density (g/cm3) >3.6 3.89 3.96

Maximum Use Temp(°C) 1450 1600 1650

Water Absorption(%} 0 0 0

ROHS Hardness >85 >89 >89

Flexural Strength MPa(psiX l〇3) 20°C 358(52) 550 550

Compressive Strength MPa(psi X l〇3) 20°C 2068(300) 2600(377) 2600(377)

Fracture Toughness Mpa m’/j K(lc) 4-5 5.6 6

Thermal Expansion

Coefficient{lXi〇-6/°C)

25-1000〇 C 7.6 7.9 8.2

Thermal Conductivity

Coefficient(W/m° K}

206C 16 30.0 30.4

Thermal Shock Resistance(°C) ATc 250 200 200

Dielectricity Constant 1MHz.25〇 C 9 9.7 9.7

Dielectric Strength (ac-kV/mm)(acV/mil)

8.3(210) 8.7(220) 8.7(220)

Volume Resistivity(ohm-cm) 100°C >1013 >1014 >1014

Advantages

1). Excellent electrical insulation
2). High hardness
3). Relatively low strength and fracture toughness
4). Resistance to wear and corrosive
5). Excellent thermal stability
6). Resistance to high temperatures
7). High electrical resistivity
8). Good chemical stability and resistance
9). High corrosion resistance
