Full Automatic White Sugar Film Coating Machine Pharma Machinery
For High Outputs
Product Overview of Film Coating Machine
BG Large Capacity Automatic Snack Food Sugarcoating Machine is
mainly used for tablet, pellet, and candy to carry out organic thin
film coating, water soluble thin film coating, slow and control
releasing coating, dropping pellet coating, sugar-coating and
chocolate in pharmaceutical and foodstuff industry.
Product Parameters of Film Coating Machine
| Item | BG-150 |
| Capacity (kg/time) | 150 |
| Speed of drum (rpm) | 3-15 |
| Power of main motor (kW) | 2.2 |
| Power of motor for high efficiency filtering hot air (kW) | 1.5 |
| Power of motor for dust removing and air exhaust (kW) | 5.5 |
| Overall size of main machine (mm) | 1,430 x 1,250 x 2,060 |
| Overall size of high efficiency filtering hot air machine (mm) | 900 x 1,000 x 2,300 |
| Overall size of dust removing and air exhaust fan (mm) | 920 x 910 x 2,090 |
| Weight of main machine (kg) | 1,200 |
| Weight of high efficiency filtering hot air fan (kg) | 300 |
| Weight of dust removing and air exhaust fan (kg) | 400 |
trait of Film Coating Machine
1. Display with touch screen
2. Expanded PLC module, all parameters are set in control panel
3. Because of sound and heat insulation, it has temperature
insulation effect to inside of machine
4. Operate at full seal and negative pressure state
5. Nozzle (from Japan)-uniform atomizing, big area of atomizing,
adjustable direction,the sprayer has no dropping leakage and block
6. Promote material to stir aslant and writhe. The exchanging
frequency is frequent.Therefore it can raise the rate of finished
product

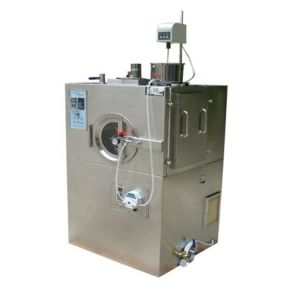

Product Show of Film Coating Machine
Application of Film Coating Machine
This chocolate sprayer is mainly used for making granules and film
coating on tablets. It can also be used to make spherical products
or granules, mixing, polishing, etc.
