Longspan Shelving Warehouse Steel Pallet Racking System for Sale
1. Brief introduction of Racking System
Rack/Shelf, used in warehouse, to store different industry
products.
Storage rack can be divided into many groups according to its
functions, such as
(1) selective pallet rack, to store palletized goods.
(2) light duty rack, usually less than 500kgs per level, with
wooden board or steel shelf as decking
(3) medium duty rack, normally above 500kgs per level, but less
than 1000kgs per level, with wooden board or steel shelf as
decking.
(4) heavy loading duty racks, normally loading duty is from 1 ton
to 4 tons per level, with wooden board, wire mesh or steel shelf as
decking.
(5) cantilever rack, to store long items, such as, steel bars,
metal sheets, wooden boards, aluminum tubes, etc.

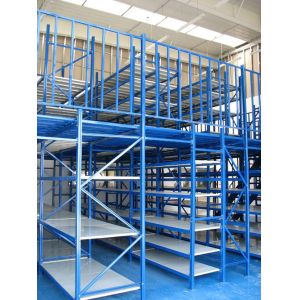

(6) mezzanine floor, like a raised steel floor, can be 2 layers or
3 layers, with 300kgs-1000kgs per sqm as loading duty, equipped
with stairs or cargo list, to add vertical spaces for storage
requirements.
(7) drive in pallet rack, often used in cold rooms to store
beverage, foods, fruits, or something similar with a demand of high
storage density, on unique pallets.
(8) mold rack, to display tooling molds, normally for injection
molds storage, with drawer type, easily sliding.
(9) flow in rack. Goods, or products can slide itself to other side
by gravity.
(10) compactor cabinet, to keep files, papers, drawings, or
valuable items.
| Product name | Warehouse pallet storage rack |
| Brand | WUHAO |
| Advantage | 1) Color and size can be adjusted according to your requirements; 2) Ideal for large quantity and bulk operation, and pallet racks;
3) Surface treatment: Epoxy powder coated and color optional; 4) Easy to install and dismantle; 5) Available with light, medium, and heavy carrying capacities;
6) High quality and good appearance; 7) The most commonly used in all storage systems for palletized
goods; 8) Compatible with most types of handling equipment, To achieve a
variety of size and weight of the tray quick access; 9) each layer carrying up to 500-5000kg; 10) The reliable and efficient service before and after deal.
|
| Material quality | High quality Cold-rolled Steel |
| Surface treatment | Epoxy powder coated and color optional |
| Structural features /Specification | 1) This kind of warehouse rack made of high-grade cold-rolled
steel, with strong surface treatment, strong enough in
construction. 2) The rack with long life-span is anti-corrosion, so it is widely
used in warehouse of various countries. 3) The layer board can be metal plain panel or wire grid panel. | model | light storage rack ( mm) | middle storage rack | heavy storage rack | heavy storage rack | heavy storage rack | | specification | 1500*500*2000 | 2000*600*2000 | 2000*800*3000 | 2000*800*3000 | 2000*800*3000 | | size of upright | 30*50 | 30*80 | 60*80 | 70*90 | 70*90 | | size of bunton | 30*50 | 40*80 | 50*80 | 50*110 | 50*120 | | thickness(upright) | 1.0 | 1.2 | 2.0 | 2.5 | 2.5 | | thickness(board) | 0.5 | 0.5 | 1.0 | 1.0 | without | | Thickness(bunton) | 1.0 | 1.2 | 2.0 | 2.5 | 2.5 | | capacity( per layer) | 150KG | 300KG | 1000KG | 1500KG | 2000KG | | layer | 4 | 4 | 3 | 3 | 3 |
|
| Packing | Knockdown package. The beams, shelves and upright posts are separate packed by
cartons. Safe for long-distance transportation. Container load:10-15 ton per 1x20ft container, 20-25 ton per
1x40ft container |
| MOQ | 10sets |
| Delivery time | Within 25 workday upon receipt of the deposit |
| Payment term | 30% deposit, the balance against copy of B/L |
| Loading port | Nanjing, China |
| Supply Ability | 8000 pieces per month. |
| Quotation | Please offer us the following information in details, so we can
give you the exact quotation: 1) Size of your warehouse; 2) Full details of size’s*D*H; 3) How many bays you want; 4) How many layers you want; 5) Loading capacity of each layers; 6) RAL color you require; 7) Drawing (if available). |
3. Production flow
4. Packing & Shipping
