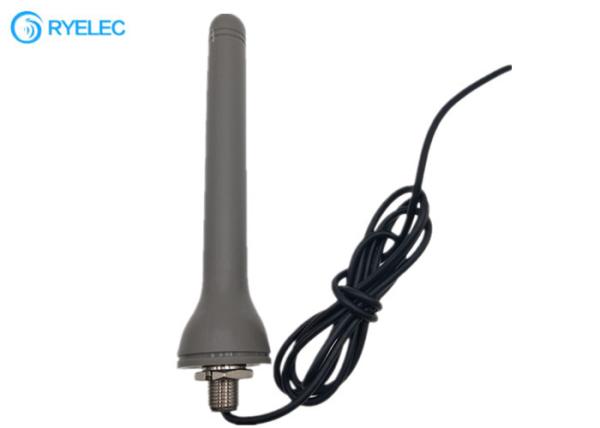

Custom Screw Mount Anti Explosion Proof GSM 2.4G 3G 4G LTE Antenna
With RG174 Cable
key specification:
4G/LTE antenna Specification
|
| Frequency Range | 698-960/1710-2700MHz
|
| V.S.W.R | 2.5:1
|
| Gain | 6dBi
|
| Polarization | Vertical
|
| Radiation | Omni directional
|
| Max Input power(W) | 50
|
| Impedance | 50 ohm
|
| Max wind speed | 200km/h
|
Mechanical Specifications
|
| Size | 149mm
|
| Cable | 3m RG174, RG58, RG316, LMR100 or others
|
| Connector | SMA straight male, SMB, FME, FAKRA or others
|
| Mounting | Screw mount(M12)
|
| Housing | Black ABS
|
Environmental Specification
|
| Working Temp | -40℃~+85℃
|
| Vibration | Sine sweep 1g(0-p), 10~50~10Hz each axis
|
| Humidity | 95%~100%RH
|
| Waterproof | 100% waterproof
|
Product shows:
Antenna is a kind of converter, which transforms the guided wave
propagating on the transmission line into electromagnetic wave
propagating in unbounded medium (usually free space), or vice
versa. A part of a radio device used to transmit or receive
electromagnetic waves. Radio communication, radio, television,
radar, navigation, electronic countermeasures, remote sensing,
radio astronomy and other engineering systems, which use
electromagnetic waves to transmit information, all rely on the
antenna to work. In addition, in the transmission of energy by
electromagnetic wave, non signal energy radiation also needs
antenna. Generally, antennas are reversible, that is, the same pair
of antennas can be used as both transmitting and receiving
antennas. The basic characteristic parameters of the same antenna
as transmitting or receiving are the same. This is the reciprocity
theorem of antenna.
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or
return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. What’s the delivery time?
It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality.
4. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with
each other, the samples will be ready for 3-5 days. The samples
will be sent to you via express and arrive in 3-5 days. You can use
your own express account or prepay us if you do not have an
account.
5. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire
harness & cable assembly design. Just let us know your ideas and we
will help to carry out your ideas into perfect products. It does
not matter if you do not have someone to complete files. Tell us
your detalied SPEC. of products, and we will send you finished
drawing for confirmation.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
