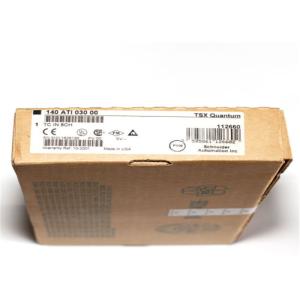

SCHNEIDER 140ATI03000 TSX QUANTUM 140 ATI 030 00 INPUT MODULE 8 POINT 16 BIT

SCHNEIDER 140ATI03000 TSX QUANTUM 140 ATI 030 00 INPUT MODULE 8 POINT 16 BIT

With a CompactLogix controller
• For expansion I/O in a MicroLogix 1500 controller assembly
• In an assembly with a 1769-ADN DeviceNet adapter
• In an assembly with a 1769-AENTR Ethernet adapter.
Unless connected to a MicroLogix 1500 base, each bank of I/O modules must include its own power supply.
Install the I/O modules on a panel with two mounting screws or on a DIN rail. The modules mechanically lock together
with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by
a moveable bus connector

• Once the modules are locked together, the system becomes a rugged assembly.
• Upper and lower tongue-and-groove slots guide the module during installation and secure the module within thesystem.
• Removable terminal blocks help ease the wiring task.
• Self-lifting, field-wire pressure plates cut installation time.
• The patented bus connector with the lock function enables consistent and system communication.
• A color bar is provided on the front of the module.
• Digital and field circuits are optically isolated.

Digital I/O Modules
Choose digital I/O modules when you need these features.
Most output modules have built-in surge suppression to reduce the effects of high-voltage transients. Use an additional suppression device if an output is being used to control inductive devices, such as relays, motor starters, solenoids, ormotors.

Type Description
Input An input module responds to an input signal in the following manner:
• Input filtering limits the effect of voltage transients that contact bounce and/or electrical noise cause. If not filtered, voltage transients could produce false data. All input modules use input filtering.
• Optical isolation shields logic circuits from possible damage due to electrical transients.
• Logic circuits process the signal.
• An input indicator turns on or off, which indicates the status of the corresponding input device.
Output An output module controls the output signal in the following manner:
• Logic circuits determine the output status.
• An output indicator displays the status of the output signal.
• Optical isolation separates module logic and bus circuits from field power.

OTHER SUPERIOR PRODUCTS

Main

range of product

Modicon Quantum automation platform

product or component type

Analogue input module

type of filter

Notch filter - 3 dB at 50/60 Hz

Single pole low pass - 3 dB at 20 Hz

Complementary

analogue input number

8

addressing requirement

10 input words

analogue input type

Thermocouple: - 210...760 °C for thermocouple J

Thermocouple: - 270...1000 °C for thermocouple E

Thermocouple: - 270...1370 °C for thermocouple K

Thermocouple: - 270...400 °C for thermocouple T

Thermocouple: - 50...1665 °C for thermocouple R

Thermocouple: - 50...1665 °C for thermocouple S

analogue input resolution

16 bits

input impedance

> 1 MOhm

absolute accuracy error

+/- 2 °C plus + 0.1 % of reading thermocouple E

+/- 2 °C plus + 0.1 % of reading thermocouple J

+/- 2 °C plus + 0.1 % of reading thermocouple K

+/- 2 °C plus + 0.1 % of reading thermocouple T

+/- 4 °C plus + 0.1 % of reading thermocouple R

+/- 4 °C plus + 0.1 % of reading thermocouple S

linearity error

1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C

accuracy drift according to temperature

0.15 µV/°C + 0.0015 % of reading/°C max low level voltage

common mode rejection

> - 120 dB 50/60 Hz

isolation between channels and bus

1780 V AC for 60 s

2500 V DC for 60 s

isolation between channels

300 V DC

220 V AC

update time

1000 ms

fault type

Broken wire

Overtacking scale

marking

CE

cold junction compensation

Internal 0…60 °C

local signalling

1 LED (green)bus communication is present (Active):

1 LED (red)external fault:

8 LEDs (green)channel is turned on:

8 LEDs (red)channel fault:
