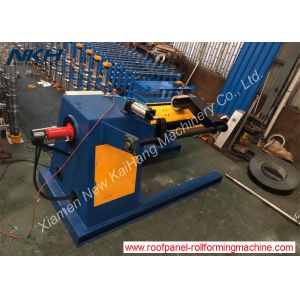

Professional Hydraulic Uncoiler For Corrugated Panel Making Machine

Hydraulic un – coiler for light gauge roofing/ corrugated panel making machine

Application:

A hydraulic de-coiler is equipment for unrolling the steel coils and always works for light gauge roofing/corrugated panel roll forming machine

Quick Detail:

1. Thickness : 0.4mm-0.8mm
2. Material : Galvanized Sheets, PPGL, G300-G550
3. Input width: Max. 1250mm
4. Material weight: Max. 5MT
5. Rotation way: by driven motor

Description/Technical Parameter details of the de-coiler

Hydraulic system expand coil inner hole, Pump motor: 3KW

Frequency Inverter to regulate turning speed, Motor: 3KW

Inverter brand: TAIWAN Delta brand

Taper wedge expand type

Coil Inner-diameter=510+/-30mm

The main core shaft rotated by the back rotating cylinder for the synchronism to avoid the oil leakage

The main core shaft diameter: 203mm

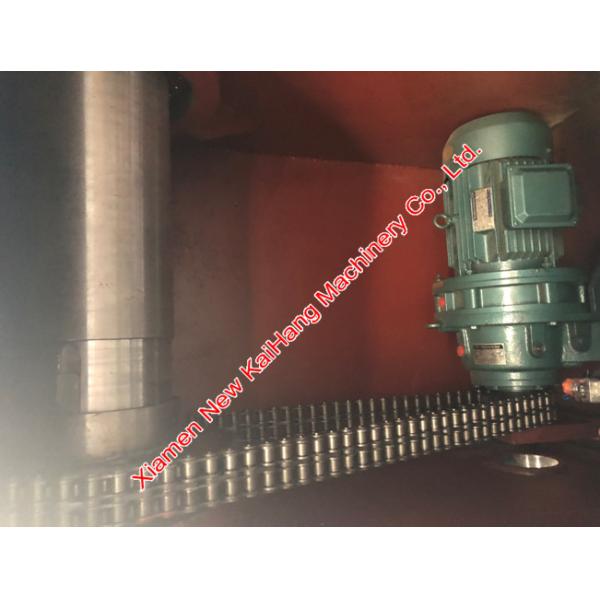

Double row chain connect the shaft and the motor with gear box and there is one support plate fixed on the base frame /on the side of the gear box to make the running stable and avoid the gear box easy damage

Four complete steel plate (18mm) design to make the carriage stronger

Coil width = Max.1250mm

Load capacity = Max. 5Tons

Pneumatic top arms to press the sheets when start/stop the rotation of the coil

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
