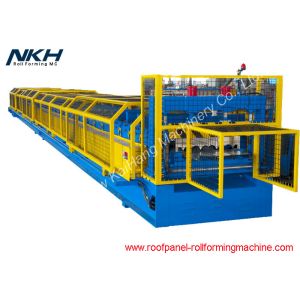

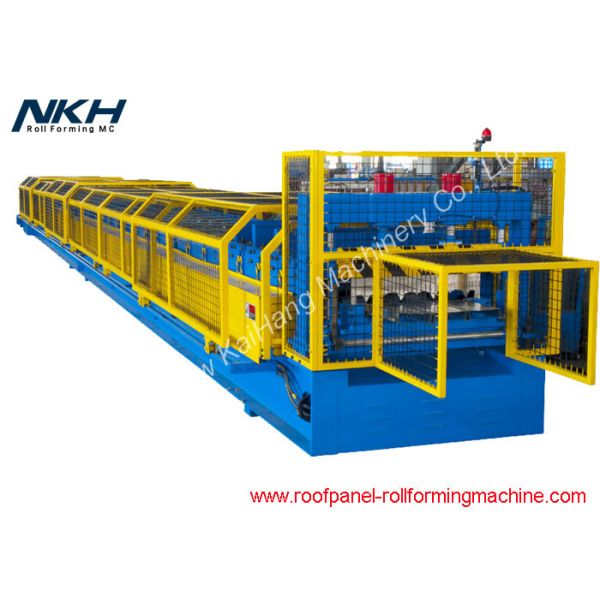

Professional Metal Deck Forming Machine GI/PPGL Material With 600mm Cover Width

600mm over width floor decking machine, metal form deck roll forming machine

Application:

There are different steel deck roll forming machines manufacturing metal decks for different applications, and the configuration or components of each machine vary accordingly, for example, some deck machine have embossing rolling tools while some others do not. Metal deck roll forming machines have been increasingly popular in market, and over 90% steel deck roll forming machines buyers produces metal floor deck and that’s why a deck roll forming machine is most of time named as metal floor deck roll forming machine or steel decking floor roll forming machine.

Quick Detail:

1. Thickness : 0.8-1.2mm
2. Material : GI/PPGL
3. Coil width : 1000mm
4. Effective width: 600+5mm
5. Material weight : 5tons, 6tons, 7tons, 8 tons, 10tons
6. Coil inner diameter : 510mm+/-+30mm
7. Driven way: by driven motor
8. Cutting way: by hydraulic group
9. Cutting tolerance : ±1mm

Machine list:

1. 5Tons hydraulic un-coiler without coil car
2. Roll former
3. Hydraulic cutting device
4. Run out rack or automatic stacking device
5. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic de-Coiler with/without coil car

Expansion system by hydraulic group, Pump motor: 3KW

Driven motor to run the coil, Motor: 3KW

Inverter brand: TAIWAN Delta brand

Coil Inner-diameter=510+/-30mm

Coil width = Max.1250mm

Taper wedge expand type

Load capacity = Max. 5Tons

Snubber arms on top by pneumatic or hydraulic as per order

The coil car included or exclude as per order

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

Schneider brand low voltage electric elements

• Product Rack Un-powered, 3 units

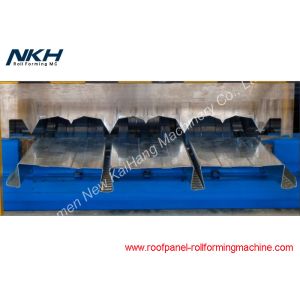

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
