    Highly Reflective 3003 H22 Aluminium Checker Plate Sheet Aluminum Tread Plate Good Slip Resistance

    Ask Lasest Price
    Brand Name : HUANYU
    Model Number : HYTP3003H22
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 120 metric tons per month
    Delivery Time : 21 days
    • Product Details
    • Company Profile

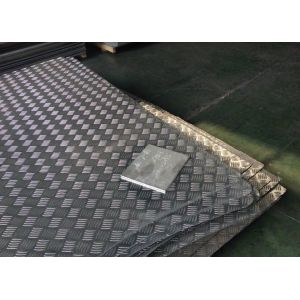

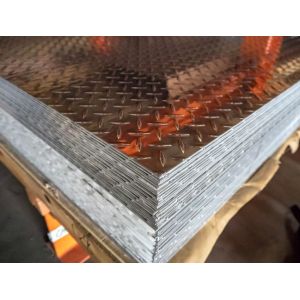

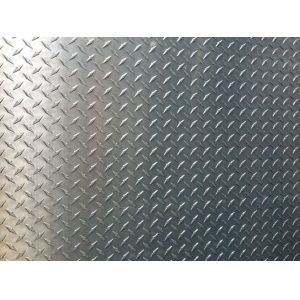

    Highly Reflective 3003 H22 Aluminium Checker Plate Sheet Aluminum Tread Plate Good Slip Resistance

    Highly Reflective, Economical 3003 H22 Aluminum Sheet Plate Aluminum Tread Plate With Good Slip Resistance

    Having good forming, drilling and welding ability, 3003 H22 Aluminum Diamond Plate is easy to fabricate and its raised diamond lug pattern provides good slip resistance.

    Fire Truck Quality Diamond Plate which has grooves etched in the top of the diamond for added traction.
    3003 H22 Aluminum Diamond Plate, Aluminum Tread Plate, this highly reflective, economical product is widely used in decorative, cosmetic and architectural applications.
    Aluminum Diamond Plate is widely used for industrial applications - flooring, loading ramps, trench covers, dock flooring, stair treads, elevator floors, freezers floors, etc.


    3003 Chemical Composition Limits
    Weight%AlCuSiFeMnZnOthers
    3003Rem0.05-0.200.60 max0.70 max1.0-1.50.10 max0.05 each
    0.15 total

    Typical Mechanical Properties

    MaterialConditionTensile Strength (ksi min)Yield Strength (ksi min)Elongation % in 2" 0.064 SheetMin 90° Cold Bend Radius for 0.064" Thick
    3003-0 Sheet 0.064" thick3003-014-195250
    3003-H12 Sheet 0.064" thick3003-H1217-231260
    3003-H14 Sheet 0.064" thick3003-H1420-261750
    3003-H16 Sheet 0.064" thick3003-H1624-302141/2 - 1 1/2 T
    3003- Sheet 0.064" thick3003-H1827 min2441 1/2 -3T
    Quality Highly Reflective 3003 H22 Aluminium Checker Plate Sheet Aluminum Tread Plate Good Slip Resistance for sale
