Welded itary sand gabion box wall Defensive barrier with sand for defence
Product Description

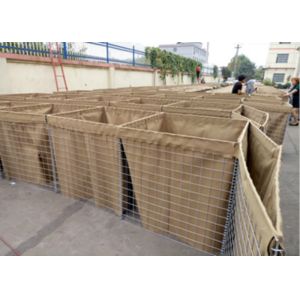

Defensive barrier also named as Defensive bastion, defense wall, sand cage, welded gabion box, etc. It is a
prefabricated, multi-cellular system, made of zinc coated steel
welded mesh and lined with non-woven geotextile. Units can be
extended and joined using the provided joining pins. It is easy
installed with using minimal manpower and commonly available
equipment. After extended, it is filled with sand,stone,then Defensive barrier like a defence wall or bunker, it is widely used for itary
fortification and flood control.
Specification
Wire diameter: 3mm, 4mm, 5mm
Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be
customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
| Model | Height(M) | Width(M) | Length(M) | Number of cells |
| No-1(DB 1) | 1.37 | 1.06 | 10 | 5+4=9 cells |
| No-2(DB 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| No-3(DB 3) | 1.0 | 1.0 | 10 | 5+5=10 cells |
| No-4(DB 4) | 1.0 | 1.5 | 10 | 5+5=10 cells |
| No-5(DB 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| No-6(DB 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| No-7(DB 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| No-8(DB 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| No-9(DB 9) | 1.0 | 0.76 | 9.14 | 6+6=12 cells |
| No-10(DB 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
Features
Strong and durable structure.
Quality geotextile lining.
Labor saving design.
Quick and easy to assemble and deploy.
Long service life.
Application
Perimeter security and defence walls
Equipment revetments
Explosive and contraband search areas
Ammunition compounds
Personnel and material bunkers
Observation points
Defensive
