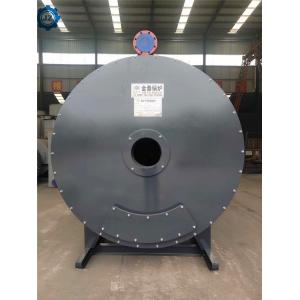

Automatic Industrial Mobile Steam Boiler Gas Fired Oil Steam Boiler
For Construction
This oil &gas steam boiler is three return fire tube steam
boiler. The burning control, water feed, programs run, etc, is full
automatic.It equipped with a bias furnace tube structure, and high
temperature gas into the atmosphere through five-return smoke tube,
smoke chamber. It equipped with good performance burner and
advanced techniques. This fantasy boiler is safe and reliable, and
also has the advantage of compact structure, simple operation, easy
installation, high efficiency, less pollution and noise, etc
Model:WNS oil fired steam boiler
Structure:horizontal fire tube, wet back, three pass
Steam Capacity:1-20ton/hour
Steam
Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
Steam Temperature:184 °c,194°c, 204°c,226°c(As long as the steam
temperature you need is lower than 226°c, we can do it).
Fuel:heavy oil, light oil, natural gas, city gas, lpg,lng,etc
Application: textile mill, food, beer and brewery factory,chemical
industry, garment factory, printing mill, paper masking
industry,milk pasteurization, pharmaceutical industry etc
Boiler characteristics
WNS series is a classical shell type boiler, with classical design:
firetube+ wetback+ 3pass. Its average thermal efficiency >95%,
design working life span more than 15years. Equipped with
well-known auxiliary parts, such as BALTUR/RIELLO- Burner, DANFOSS-
Pressure Controler, SIEMENS- PLC operation system, LEO- Multistage
Pump, etc. to ensure the boiler's steady performance. The entire
system warranty period: 2 Years.
Boiler Technology Advantage
Advanced three pass wet back design:adopts the most sophisticated
three returns all wet back structure,thread smoke tube structure,
weld joint with high quality.
Advanced manufacturing equipment endows Safe and reliable
property:adopts corrugated furnace lamps, multi-chain protection.
Water level, steam pressure, gas pressure protection. And before
leaving factory, all the boiler have been rigorous inspection and
testing, including pressure tests and X-ray detection.
Large boiler proper heating area:adopts unique design of a large
combustion chamber which increases the radiation heating furnace
area, reducing the size of the boiler, reducing the NOX emissions.
High efficiency 98%:with threaded pipe and high effective
insulation materials and econoizer, increasing the heat transfer
and improve boiler thermal efficiency.
PLC intelligent controller:boiler control system suitable for high
temperature, high humidity environment of long-term operation.
High standard: strictly in accordance with Chinese national norms
and standards of production, all boiler pressure parts are of high
quality steel
Technical Parameter
| Model | WNS0.5-1.0-Y(Q) | WNS0.7-1.0-Y(Q) | WNS1-1.25-Y(Q) | QWNS1.5-1.25-Y(Q) |
| Steam Capacity | 500 KG/H | 700 KG/H | 1000 KG/H | 1500 KG/H |
| Boiler Horsepower | 32 HP | 45 HP | 64 HP | 96 HP |
| Working Pressure | 0-10 BAR | 0-10 BAR | 0-13 BAR | 0-13 BAR |
| Steam Temperature | ≤184 ℃ | ≤184 ℃ | ≤194 ℃ | ≤194 ℃ |
| Fuel Type | Gas, Oil | Gas, Oil | Gas, Oil | Gas, Oil |
| Model | WNS2-1.25-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS5-1.25-Y(Q) |
| Steam Capacity | 2000 KG/H | 3000 KG/H | 4000 KG/H | 5000 KG/H |
| Boiler Horsepower | 128 HP | 192 HP | 256 HP | 320 HP |
| Working Pressure | 0-13 BAR | 0-13 BAR | 0-13 BAR | 0-13 BAR |
| Steam Temperature | ≤194 ℃ | ≤194 ℃ | ≤194 ℃ | ≤194 ℃ |
| Fuel Type | Gas, Oil | Gas, Oil | Gas, Oil | Gas, Oil |
Boiler Application
Disel fired steam boiler is being widely used in hospitals,
schools, textile mills, garment factories, large supermarket,
garment factories, dyeing factory, hotel, dining room, dining room,
swimming pool, food factory, beverage factory, soy products, meat
products factory, cannery, brewery, pharmaceutical factory, packing
plants, building materials factory, paint factory and other places
of the enterprises and institutions.
FAQ
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel.
The liquid fuel could be heavy oil, light oil, diesel, furnace oil,
bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel
could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
boiler have oil burner, gas burner, and oil&gas dual fuel
burner, we can offer the specific burner based on customers’
requirement.
3. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working
pressure and furnace diameter, generally, the thickness is between
10~18mm, large combustion space, and combustion sufficient.
4. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler,
for example, the pressure for 2 ton steam capacity boiler is about
8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
5.The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
