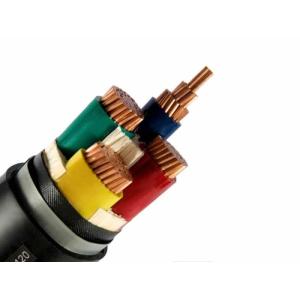

Underground Low Voltage Electrical Cable XLPE PVC Polyethylene
Insulated Wire
Conductor: Copper or Aluminum
Insulation: XLPE, PVC, PE
Armor Layer: DSTA, SWA, DAWA
Outer Sheath:PVC or PE
ARMORED LOW VOLTAGE ELECTRICAL CABLE APPLICATION
These cables are used for electricity supply in low voltage
installation system. They are suitable for installation in indoors
an outdoors, in cable ducts, under ground, in power and switching
stations, local energy distributions, industrial plants. And the
armored electrical cable could bear certain external force.
ARMORED LOW VOLTAGE ELECTRICAL CABLE STANDARD
ASTM IEC BS DIN NFC ISO9001-2008
ARMORED LOW VOLTAGE ELECTRICAL CABLE NORMINAL AREA
1.5mm2 2.5mm2 4mm2 6mm2 10m2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2
120mm2 150mm2 185mm2 240mm2 300mm2 400mm2 500mm2 630mm2 800mm2
1000mm2
LOW VOLTAGE ELECTRICAL CABLE CORES
1 core, 2 core, 3 core, 4 core, 5 core, 2+1 cores, 3+1 core, 3+2
cores, 4+1 core
LOW VOLTAGE ELECTRICAL CABLE TYPES
| TYPE | DESCRIPTION | MAIN APPLICATION |
| CU core | AL core | | |
| YJV/YJY | YJLV/YJLY | (Flame retardant) Cu, Al core XLPE insulated,PVC/PE sheathed power
cable | For laying indoor ,tunnel,canal and underground.Unable to bear
external mechanical forces,but bear the traction force during laid |
| YJV22/YJV23 | YJLV22/YJLV23 | (Flame retardant) Cu, Al core XLPE insulated,steel tape
armored,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.Able to bear
external mechanical forces,but unable to bear large pulling force |
| YJV32/YJV33 | YJLV32/YJLV33 | (Flame retardant) Cu, Al core XLPE insulated,thin steel wire
armored,PVC/PE sheathed power cable | For laying in shaft,water underground will large difference of
level.Able to bear external mechanical forces and moderate pulling
force |
| YJV42/YJV43 | YJLV42/YJLV43 | (Flame retardant) Cu, Al core XLPE insulated,thick steel wire
armored,PVC/PE sheathed power cable | For laying in water and seabed.Able to bear positive pressure and
pulling for |
