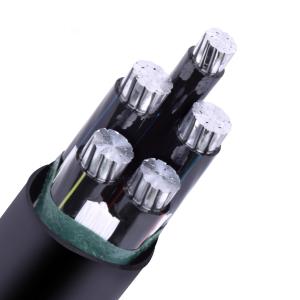

1. Structure:
Conductor: Aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride
(PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape
armored(STA)
Sheath: Polyvinyl chloride (PVC)
2. Voltage Rated:
0.6/1KV, 6KV, 8.7/15KV, 12/20KV, 26/35KV
3. Application:
The cable is suitable for supply, distribution and underground. For
laying indoors, in tunnel, cable trench and a pipe, cable unable to
bear external mechanical force, cable laid underground be able to
bear external mechanical force, but can't under external pressure.
4. Operating Features:
(1), Max .Long-time operating temperature of PVC insulated cable is
70°C
Max .Long-time operating temperature of XLPE insulated cable is
90°C
(2). Installing temperature of cable should not be less than 0°C
(3), Max short-circuit temperature is not exceed 250°C, Not more
than 5 Sec.
(4), Ambient temperature of installation is not lower than 0°C
(5), With good chemical stability, such as resistance to acid,
alkali, salt, oil and organic solvent and flame-retardant..
(6), With light weight, good character, easy to installation and
maintenance.
5. Nominal cross section size of conductor:
1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2,
70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, ,
500mm2
6. Cores available:
1 core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores,
4+1 cores
