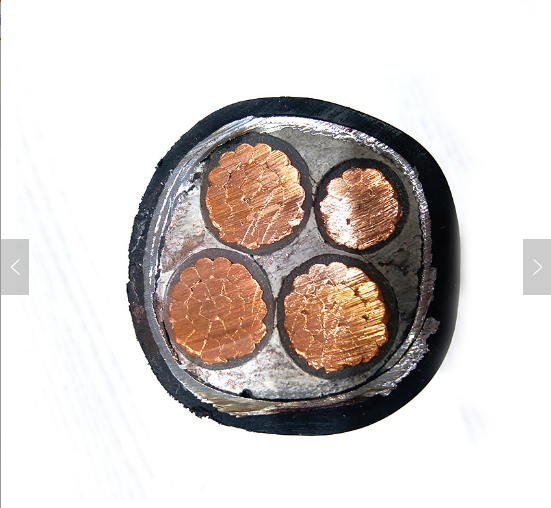

XLPE SWA Armoured Electrical Cable Copper Conductor 4 Core Fire
Resistant
The product is manufactured according to the standard of
GB12706,IEC60502,and BS6346, VDE, AS/NZS, UL, etc or as customer's
request.
The long-time permissible working temperature of cable conductive
core is not more than 70 degrees,During short circuit (max
permanent time is not more than 5 seconds), the max temperature of
cable conductor is not more than 165°C.The difference level of
laying cable is not restricted.When laying the cable,ambient
temperature is not lower than 0°C.They have good chemical
stability,and properties of acid resistance,alkali resistance,salt
resistance,oil resistance,solvent resistance and flame resistance.
The cables standared allows :
01.International standard oxygen free copper core.
02.Outer protective layer adopts environmental degradable pvc.
03.Conductor synchronous correction process,more stable operation.
04.Automatic standard extrusion equipment. the protective layer
wall thickness unifrmity.
Copper conductor XLPE insulation SWA armour type Armoured
Electrical Cable
| 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 |
| 2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 |
| 1 Core | Section area(mm2) | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 |
| 2 Core | Section Area(mm2) | 1.5-185 | / | / | / | / | / | / | / |
| 3 Core | Section area(mm2) | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
| 4 Core | Section Area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
| 5 Core | Section area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
Copper conductor XLPE insulation SWA armour type Armoured
Electrical Cable
