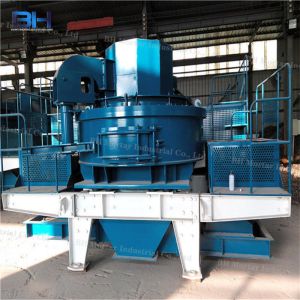

BH Convenient transportation and light maintenance sand making
machine
Description:
The impact break is called the vertical crusher and is another name
for the sand making machine. The impact crusher utilizes a
high-speed moving crusher to break the impact of the crushed
material and the impact of the high-speed moving material on the
fixed wall and the mutual impact of the moving material. The impact
crusher is mainly broken by dynamic load, and the effect is better
than the static load. When the impact crusher is working, the
material is subjected to a sufficiently large instantaneous impact,
and if the dynamic load exceeds fatigue, it is broken. Repeated
impact material can reduce the stress required for crushing.
Therefore, high-frequency impact crushing has low power
consumption, high crushing ratio, and low over-grinding.
Parameter:
Model No. | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 |
Capacity (t/h) | Cascade Feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
Full Central Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 |
Max. Feeding size(mm) | Soft Material | 35 | 40 | 45 | 50 | 50 |
Hard Material | 30 | 35 | 40 | 45 | 45 |
Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 |
Model of Motor | Y250M-4 | Y280M-4 | Y315M-4 | Y315L2-4 | Y315L2-4 |
Double Motor Power | 55*2 | 90*2 | 132*2 | 200*2 | 220*2 |
Weight (t) | 10 | 12 | 16 | 25.6 | 27.5 |
Features:
1. Automatic detection, safe and reliable - Set the vibration
display and alarm device. If the equipment malfunctions, it can
issue a warning to stop the equipment and achieve the purpose of
protecting the machine.
2. Thin oil lubrication, automatic maintenance - German original
thin oil lubrication station, double oil pump complements to ensure
oil supply, no oil flow, no oil pressure automatically stop; oil
cooling and heating device to ensure bearing lubrication is always
in the state. Therefore, the problem of bearing heat generation and
the like is completely solved, the spindle bearing is kept at a
constant temperature, and the maintenance cycle and the service
life are prolonged.
3. Easy installation and easy operation - The equipment is light in
weight, various installation methods, and portable installation;
easy to install, repair and maintain, easy to operate; once the
specific use is clear, the VSI sand making machine only needs to be
finely adjusted. Give full play to its performance.
Application:
1. Crushing process: road, railway, passenger dedicated line,
bridge, airport runway, municipal engineering, high-rise building
mechanism sand production and stone shaping, as well as building
aggregate, road road fabric, cushion material, asphalt concrete and
cement concrete bone Production of materials.
2. Mining field: Fine crushing process in the front section of
grinding, material breaking in industries such as building
materials, metallurgy, chemical industry, mining, refractory
materials, cement, abrasives, etc.
3. Sand making process: sand making process of river pebble, rock
(limestone, granite, basalt, diabase, andesite, etc.), ore tailings
and stone chips.
Work site:
