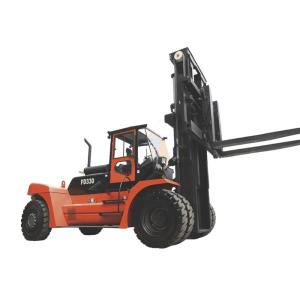

    Diesel Engine Material Handling Forklift Pneumatic Tyre Automatic Transmission

    Ask Lasest Price
    Brand Name : REACH
    Model Number : FD
    Certification : ISO/CE/TUV
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 20000 units per year
    Delivery Time : 80-90 days
    • Product Details
    • Company Profile

    Diesel Engine Material Handling Forklift Pneumatic Tyre Automatic Transmission

    15-25tons Internal Combustion Counterbalanced Warehouse Forklift Trucks 3 to 7m

    Quick Details

    ConditionNewPlace of OriginZhejiang, China
    PowerDiesel engineCertificateCE, ISO9001, TUV
    Capacity15-25tonsLifting height3-7m
    Warranty1 yearAfter-sale serviceOn-line support
    EngineChinese engine / Japanese ISUZU or MITSUBISHITransmissionAutomatic

    Packing & Delivery

    MOQ: 1 unit

    Package type: Container, nude

    Lead time: 80-90 days, negotiated


    Product Description

    15-25tons Internal Combustion Counterbalanced Warehouse Forklift Trucks 3 to 7m

    FEATURES

    With many years forklift trucks manufacturing, we brought the heavy-duty long life 15-25t forklift trucks to customers.


    ENVIRONMENT FRIENDLINESS

    The engines all environment friendly engines, which meet related exhaust emissions regulations. We have different engine brand available for customers’ choice. Noise level also comes up to EU standards.


    COMFORTABLE OPERATION

    Full suspension cabin is applied.

    Shock absorber and low noise.

    No frame connection in the corner.

    Wide view front window provides better forward view ability.

    Adjustable steering column, suspension seat, adjustable hydraulic lever component, suitable for different body size drivers.

    Comfortable operation space to the driver.


    RELIABILITY

    Our 15-25t forklift trucks are able to make the greater productivity for customers because we focusing on enhancing reliability.


    EASY MAINTENANCE

    Easy to enter and do maintenance inside.


    ModelFD250
    PowerDiesel
    Driving typeSeat
    Capacitykg25000
    Load centermm1200
    Service weightkg36200
    TyrePneumatic
    Wheels, number front rear4X/2
    Tyre size, front14.00-24-28PR
    Tyre size, rear14.00-24-28PR
    Tread, frontSmm2200
    Tread, rearPmm2510
    WheelbaseL5mm4650
    Lift heighth3mm4000
    Fork sizeL3×W×Tmm2420x250x110
    Tilt of mast/fprk carriage forward/backwardα/β.5/10
    Height, mast loweredh1mm4000
    Free lifth2mm/
    Height, mast extendedh4mm6005
    Adjustment range of forks (outside of forks)Rmm860-2720
    Overall length(not including forks)L2mm6700
    Overall widthBmm3050
    Height of overhead guard(cabin)h5mm3440
    Turning radiusWamm6475
    Ground clearance, laden, below mastm1mm280
    Minimum right angle aisle widthRamm5400
    Minimum right-angled stacking aisle widthRASAmm11000
    Travel speed, laden/unladenkm/h28/25
    Lift speed, laden/unladenmm/s320/300
    Lowering speed, laden/unladenmm/s340/470
    Max.gradeability, laden%25
    Max.drawbar pull, ladenkN230
    BatteryV/Ah24/240
    EngineModelWP7G220E300
    Rated outputkw/rpm162/2200
    Rated torqueNm/rpm1000/1400
    No.of cylinder6
    Bore × Stroke108×136
    DisplacementL7.5
    Fuel tank capacityL350


    Quality Diesel Engine Material Handling Forklift Pneumatic Tyre Automatic Transmission for sale
