Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade
length 60mm
Galvanized razor wire has thick zinc coating to resist acid rains
and all weathers. Compared with naked steel razor wire, galvanized
wire is very durable and will not rust.
Galvanized razor wire often combines with chain fences, field
fence, welded wire fence, walls and gates to provide high security.
Widely used in residential, commercial, military, garden, boundary
and prisons.

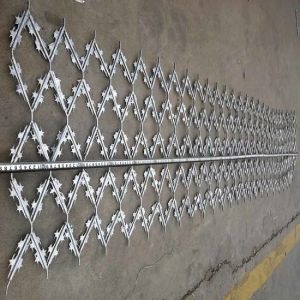

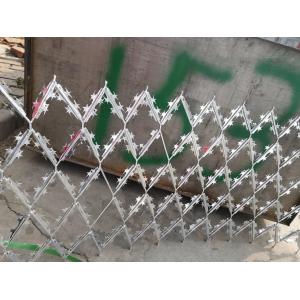

RAZOR WIRE MESH FENCE is made of sharp blade profile, that is welded together forming a
diamond shape throughout the fence.
Welded razor wire mesh is available in sheets of 1.2m, 1.8m, 2.1m
and 2.4m high and 6m lengths.
High-density diamond razor wire mesh has a diamond pattern of 150mm
high x 75mm across.
Standard density diamond razor wire mesh has a diamond pattern of
300mm high x 150mm across.
Razor wire mesh is used for any high-security applications to
protect domestic, commercial and industrial properties.
FEATURES:
– impossible to climb;
– the blade profile is extremely sharp;
– high-strength steel core wire is very difficult to cut;
– made from galvanized material or
stainless steel ensuring a long life;
– simple to install;
– powerful barrier with neat appearance;
– ensures quick and effective perimeter solution.
Advantages of galvanized razor wire:
Zinc coating protects inside steel wire;
Sharp blades scares enemies away;
Silvery appearance warning people not climbing.
Related cheap price
Razor wire Specifications:
BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.
Spiral Razor Concertina Wire Coil Specification
Outside diameter | Circles No. | Length to be covered |
|---|
450 mm | 56 | 8-9 m (3 clips) |
500 mm | 56 | 9-10 m (3 clips) |
600 mm | 56 | 10-11 m (3 clips) |
600 mm | 56 | 8-10 m (5 clips) |
700 mm | 56 | 10-12 m (5 clips) |
800 mm | 56 | 11-13 m (5 clips) |
900 mm | 56 | 12-14M (5 clips) |
960 mm | 56 | 13-15 m (5 clips) |
980 mm | 56 | 14-16 m (5 clips) |
RAZOR WIRE MESH SPECIFICATIONS:
Available in Sheet Heights (m) | 1.2m, 1.8m, 2.1m, 2.4m |
|---|
Sheet Length (m) | 6 m |
|---|
Galvanized Steel Thickness Material Z275 (mm) | 0.3 – 0.5 |
|---|
Galvanized Wire Diameter Material Z275 (mm)
(made of high carbon steel and
stainless steel) | ⌀2.4 – ⌀2.5 |
|---|
Standard Density
(apertures size, mm) | 150 x 300 |
|---|
High Density
(apertures size, mm) | 75 x 150 |
|---|
Weld Strength
of Parent Material | 60% – 70% |
|---|
Tensile Strength | 300MPA — 500MPA |
|---|
HIGH-DENSITY RAZOR WIRE MESH
STANDARD DENSITY RAZOR WIRE MESH

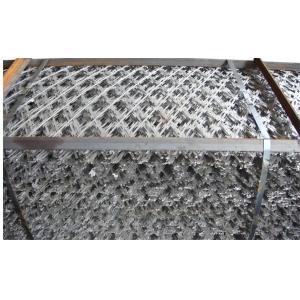

Welded razor mesh is a multi-functional, high-security mesh fencing
made of straight-blade netting welded together, packaging into a
roll form for transport. Razor wire mesh is used in operations to
pave the field after the installation of a blade barrier. This
product can protect you and your property and ensures the safety of
the protective barriers.
This razor wire security fence product is almost impossible to
climb or cut off with the standard tools, also it has a neat
appearance.

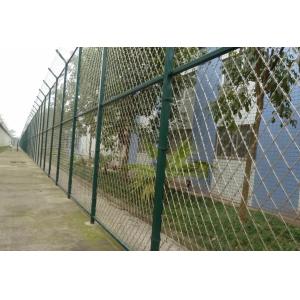

Razor mesh is installed in various parts of the world's airports,
military bases, water substation, the border fence, oil depots,
factories and so on.
Razor mesh security fence the benefits
1 it is almost impossible to climb
2 high-strength steel core very difficult to cut off
3 powerful security fence barriers neat appearance
4 no secondary use, so he will not be stolen
5 extremely simple to install, needs three to four to install
moulding.
