AC100-347V LED light for Industrial Lighting 100W 4500K-6700K
Description
LED Highbay Light
Round LED industrial Light
Input is AC100-347V
Power: 100W
PF: 0.95/0.94
Dimmable can be choosed (0-10V)
Features
Up to 150LM/W, The light power from 100-240W can replace HID of
200-1000 watts
Integrated cooling ribs for effective heat tranfer
Aiming angles can be adjusted with an increment of 15 degrees
IP66 and IK10 reted
Integrated cooling ribs for effective heat transfer
Die-Case aluminum housing, polyester powder painted finished,
corrosion resistant
Lens material; UV-stabilized polycarbonate (PC) from bayer
Sealing gasket made with materials from down corning, maintaining
high performance between -60 degrees to 180 degrees
Aiming angles can be adjusted with an increment of 15 degrees
Specification
| Model | Power | Input | Size |
| AN-RHB-260-100-05 | 100W | AC100-347V | 260*165mm |
Other Choice
| Model | Power | Size | LED | PF | LPW | Input |
| AN-RHB-260-100-05 | 100W | 160*165mm | 168
21S8P | 0.94 | 150LM/W | AC347-480V |
| AN-RHB-305-150-05 | 150W | 305*171mm | 252
21S12P | 0.94 | 150LM/W | AC347-480V |
| AN-RHB-345-200-05 | 200W | 305*171mm | 336
21S16P | 0.94 | 150LM/W | AC347-480V |
Other choice
| Modle | Input | LPW | PF | CCT | Power | Lumen | LED | Size | Dimmabler |
| AN-RHB-260-150-05 | AC100-277V | 150LM/W | 0.95 | 3000K-6700K | 100W | 15000LM | 168
7S24P | 260*165mm | Optional(0-10V) |
| AN-RHB-260-150-05 | AC100-277V | 150LM/W | 0.95 | 3000K-6700K | 150w | 22500LM | 252
7S36P | 305*171mm | Optional(0-10V) |
| AN-RHB-260-200-05 | AC100-277V | 150LM/W | 0.95 | 3000K-6700K | 200w | 30000LM | 336
7S48P | 345*181mm | Optional(0-10V) |
Packaging and Delivery
Selling Units: Single Item
Package type: 1 pc in a cartong
Lead time: 5 days for samples
| Model | Packaging Size | Weight |
| AN-RHB-260-100-05 | 310 x 310 x 162mm | 2.85kg |
| AN-RHB-305-150-05 | 345 x 345 x 180mm | 3.74kg |
| AN-RHB-345-200-05 | 395 x 395 x 192mm | 3.73kg |
Dimming Function
3-Step dimming function
This sensor can achieve 3-step dimming function, 100%--->low
light...>off.
And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective
Detection Pattern
Setting
By selecting the combination on the DIP switch, sensor data can be
precisely set for each specific application
Detection area
Detection area can be reduced by selecting the combination on the
DIP switches to fit precisely each application
Hold Time
Refers to the time period the lamp remains at 100% illumination
afterno motion detected
Stand-by period
refers to the time period the lamp remains at a low light level
before it completely switchs off in the long absence of people
When set to disable mode, the low light is maintained until motion
is detected
Stand-by Dimming Level
The low light level you would like to have after the hold time is
the long absence of people
Daylight sensor
The sensor can be set to only allow the lamp to illuminate below a
defined ambient brightness threshold
When set to disable mode, the daylight sensor will switch on the
lamp when motion is detected regardsless of ambient light level
Note that daylight sensor is active only when lamp totally switches
off

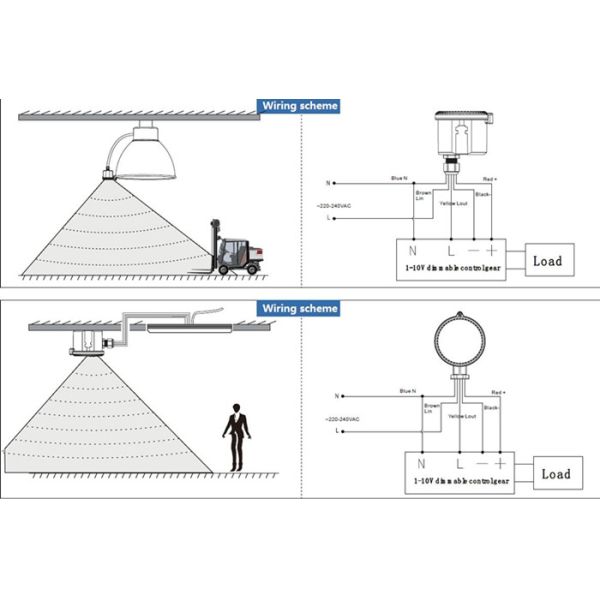

Wiring Scheme
