Safe operation walnut olive cashew nut oil extracting machinery for
home use

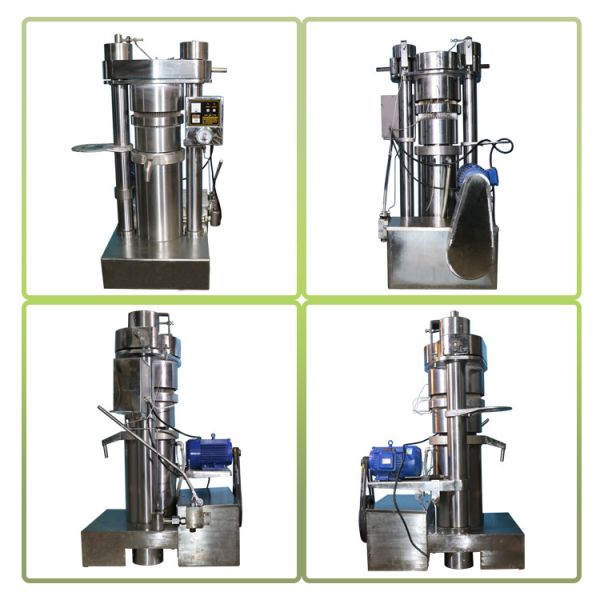

Different sides of our 6YY-185 model:
Our hydraulic machine can press kinds of oil seeds, like below :
What can our machine do?
1. Our machine can hot press, the workflow is :
2. Our machine also can cold press oil, the cold pressed oil is
healthier than hot pressed oil and refinery oil:
Where are our machines can be used?
1. Pressing oil line:
If you are the oil manufacturer, you need a pressing oil line, our
machine also is suitable for you.( We also can provide a whole line
for you.)
2. Portable pressing oil:
Our machine is small, if you need pressing oil and sell it
directly, our hydraulic machine also suitable for you. You can take
it anywhere you want to go.
How do our machines work?
This machine applied the our new supercharged technology and five
class safety protection system, offer the enough pressure and keep
the machine working safety. High precision structure hydraulic box
can over higher pressure. Separately and more perfect oil line
technoloty applied, keep the press kettle strong enough and
increase the oil rate.
Parameter of our machines:
We also have other models for your choose, if you are interested
anyone, please contact us freely.
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|
Capacity (kg/batch) | 4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
Power (3 /single phase) | 1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
Package Size(m) | 0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
Capacity (Kg/24h) | 190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Detail show
Safety assured of our machines:
Large screw
This part is strong, it can protect the user and machine safety.
And our large screw needn't adjust the distance, easy to operate
and more safe than other machines.
Pressure gauge with electric contact:
It can release the pressure automatically when the working pressure
higher than 60Mpa.
Motor cover
It can protect the motor service life.
Pressure release valve
Control the suitable working pressure, over pressure will release
automaticlly.
The Consumables of our hydraulic machine:
Our service
1. Pre-sale service:
We offer different solution for different request and material.
Factory view accepted.
Test machine accepted.
7x24 hours online service.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee
period, the seller will provide maintenance free service.(Except
the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell
party will solve by phone and email, if necessary the engineer will
go to solve the problem on the spot, the buyer should pay daily
salary $100, also pay technical visa cost, round trip tickets,
rooms and meals.
3). During the quality guarantee period, if it is the quality
problem (except easily damaged parts), the cost for maintenance and
replace will be borne by sellers.
4). During guarantee period, the seller will provide service of
with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee
period.
