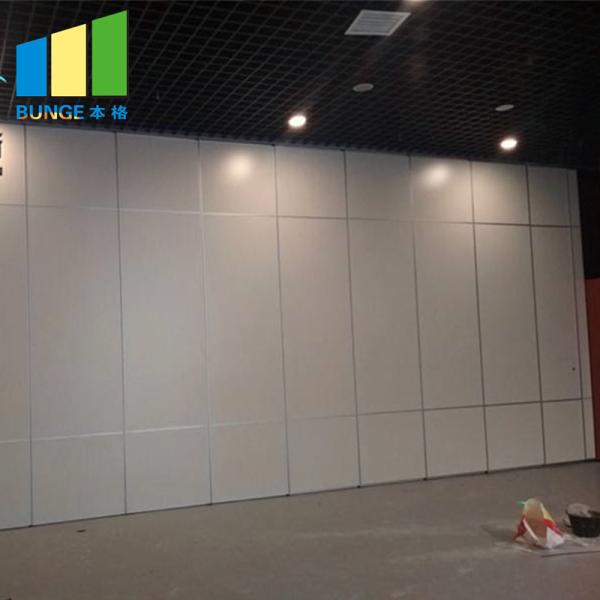

Melamine Sound Proofing Movable Partition Wall Board for Restaurant
Technical information
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series |
| Suspensionsystem | Aluminum hanging | Steal Hanging |
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. |
| Side walls sealing strength | Double seal tape |
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized |
Movable partition walls section configuration
1) Feld: acoustic fleece, pasted on the back of the panel, noise
reducible and fire resistant(made in CHINA, GERMANY AND FRANCE)
2) Substrate(basal material): based on high quality of 12/15/18mm
MDF with density of 750kg/m3,more choices for basal material:HDF,
E1 ECO-friendly MDF and Fireproof MDF(B1 grade).
3) Surface: available in three different finishes: real wood
veneer, printed wood melamine finished and fireproofing surface.
Movable partition walls board features
1. Movable partition walls board can separate the space speedy and
conveniently.
2. Top hung system without the need for a floor track.
3. Movable partition walls board is made from high density aluminum
frame, special made rubber, excellent sound insulation cotton and
finish surface, etc.
4. Around the movable partition walls board, there is sound
insulation rubber, it can help to insulate the sound entering.
5. The movable partition walls board finished panel is hanging on
the aluminum track, assembled with muti direction wheels.
Movable partition walls board finishes
1. Studios, recording rooms, listening rooms, rehearsal rooms and
more professinally interspace timbre projects.
2. Theaters, indoor gymnasiums, discos, KTV rooms and more
performance and entertainment location.
3. Meeting rooms, offices, halls, hotels and more sound absorption
and secrecy projects.
4. Air-port, railways, bus-stops, manufactories, workshops and more
noise reduction projects.
Our Services:
We ensure the Quick delivery and good quality guarantee.
Our company manufacture products according to buyer's dimension
quantity, drawing or other related requirements.
After sales service including:
Overseas service availabe,
Using top quality materials and components.
Maintenance contracts to ensure your valuable asset remains in full
work order.
