    Stainless Steel Roller Shutter Door Roll Forming Machine Curved Slat Sawing Type

    Ask Lasest Price
    Brand Name : BMS
    Model Number : SD
    Certification : CE/ISO9001/SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 35set/month
    Delivery Time : 60days
    • Product Details
    • Company Profile

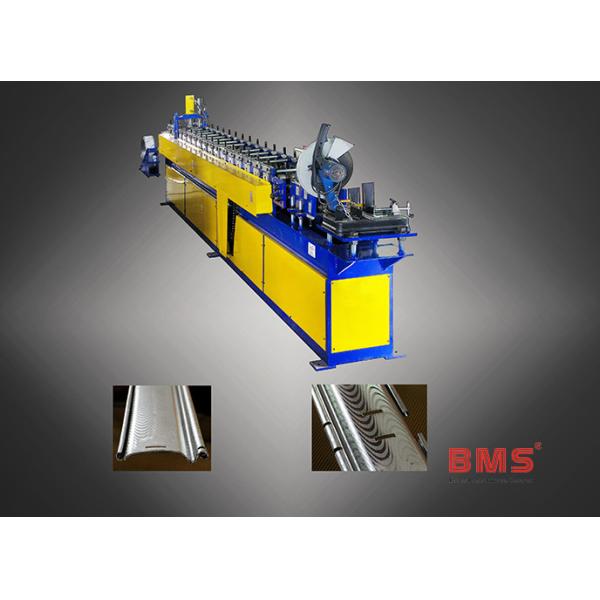

    Stainless Steel Roller Shutter Door Roll Forming Machine Curved Slat Sawing Type


    Curved Slat Sawing Type Stainless Steel Rolling Shutter Roll Forming Machine

    Machine brief
    Rolling shutters are mostly made of stainless steel or aluminum profiles, used in warehouses and stores, etc. Their height and shape can vary greatly. The BMS Steel Rolling Shutter Roll Forming Machine is extremely versatile and ensures the manufacture of products that are always working and look good.

    Components

    No.ItemUnitQty
    13T Manual decoilerset1
    2Main roll forming machineset1
    3Cutting Systemset1
    4PLC control cabinetset1
    5Supporter tableset1


    Machine technical parameters

    No.Main technical parametersDescription
    1Suitable to material

    Color steel plate, galvanized sheet, Stainless Steel,

    aluminum coils and etc.

    2Cutter partSawing
    3Roller station14 step roll forming
    4The thickness of the feeding material0.8-1.2mm
    5Productivity8-12 m/min
    6Rollers' material45# steel, Surface polishing hard chromium plating
    7Diameter of shaft55mm, 40cr
    8WeightAbout 5200KGS
    9Size5800*1000*1300mm
    10Voltage380V 50Hz 3phases
    11Wall thickness of the main forming machine18mm steel plate
    12Main forming machine body300# H type steel by welding
    13Motor power5.5+3kw
    Quality Stainless Steel Roller Shutter Door Roll Forming Machine Curved Slat Sawing Type for sale
