    Stainless Steel Cable Wire Mesh

    Ask Lasest Price
    Brand Name : LNF ROPE WIRE MESH
    Model Number : Stainless Steel
    Certification : ISO
    Price : 16.78$/M2
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 10000M2/per Week
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Stainless Steel Cable Wire Mesh

    Stainless Steel Cable Wire Mesh


    Two small greening facades with square patterns are used to encourage climbing plants.
    Square cable mesh can also be used as green facades upon your requirements.
    Stainless steel cable mesh are mounted to a steel frame to create a green wind-proof wall along the road.
    Ideal for acting as a vertical wind-proof wall and decorating your building at the same time
    Green building facades with green are climbable to most vines and create a beautiful building green facades that catch people's eyes.
    Beautiful building green facades drive passers-by engaged with the building.
    Green facades cover the outside of a building to prevent falling accidents.
    Stainless steel green facades ensure the safety of your families and minimize fall accidents.
    Three plan of the green facade with cable border, tubular frame and diamond pattern dimension.

    Specification:

    Specification of stainless steel green facades
    CodeXYSSuitable plant typesBorder style
    SSGF-1100 mm173 mm80 mmSlow growing vines and tendril climbersCable border or tubular frame
    SSGF-2160 mm208 mm80 mmSlow growing vines and tendril climbersCable border or tubular frame
    SSGF-3240 mm415 mm120 mmSlow growing vines and tendril climbersCable border or tubular frame
    SSGF-4300 mm519 mm160 mmSlow growing vines and tendril climbersCable border or tubular frame

    Black Oxide Mesh
    ModelWire DiameterMesh OpeningNormal Break
    inchmminchmm1bs.
    Stainless Steel Rope Wire Mesh-12203/641.24/5 x 4/520 x 20270
    Stainless Steel Rope Wire Mesh-12253/641.21x125.4 x 25.4270
    Stainless Steel Rope Wire Mesh-12303/641.21.2 x 1.230 x 30270
    Stainless Steel Rope Wire Mesh-12383/641.23/2 x 3/238 x 38270
    Stainless Steel Rope Wire Mesh-16251/161.61 x 125.4 x 25.4480
    Stainless Steel Rope Wire Mesh-16301/161.61.2 x 1.230 x 30480
    Stainless Steel Rope Wire Mesh-16381/161.63/2 x 3/238 x 38480
    Stainless Steel Rope Wire Mesh-16501/161.62 x 251 x 51480
    Stainless Steel Rope Wire Mesh-16761/161.63 x 376 x 76480
    Stainless Steel Rope Wire Mesh-20385/642.03/2 x 3/238 x 38676
    Stainless Steel Rope Wire Mesh-20505/642.02 x 251 x 51676
    Stainless Steel Rope Wire Mesh-20605/642.02.4 x 2.460 x 60676
    Stainless Steel Rope Wire Mesh-20765/642.03 x 376 x 76676
    Stainless Steel Rope Wire Mesh-24503/322.42 x 251 x 51920
    Stainless Steel Rope Wire Mesh-24603/322.42.4 x 2.460 x 60920
    Stainless Steel Rope Wire Mesh-24763/322.43 x 376 x 76920
    Stainless Steel Rope Wire Mesh-24903/322.43.55 x 3.5590 x 90920
    Stainless Steel Rope Wire Mesh-24103/322.44 x 4102 x 102920
    Stainless Steel Rope Wire Mesh-32501/83.22 x 251 x 511600
    Stainless Steel Rope Wire Mesh-32761/83.23 x 376 x 761600
    Stainless Steel Rope Wire Mesh-32901/83.23.55 x 3.5590 x 901600
    Stainless Steel Rope Wire Mesh-32101/83.24 x 4102 x 1021600
    Stainless Steel Rope Wire Mesh-32121/83.24.75 x 4.75120 x 1201600

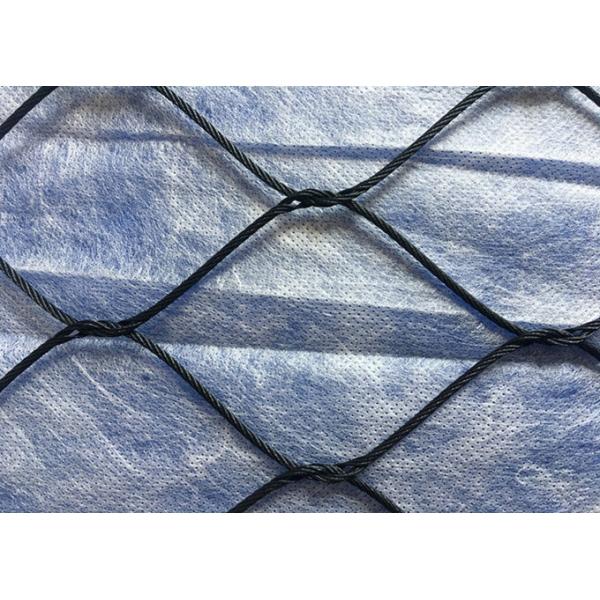

    Black Oxide Wire Rope Mesh Details


    Mesh TypeFerruled or Knotted
    Mesh Angle60 degree in rhombus shape
    Mesh OrientationHorizontal or Vertical
    Panle MeasurementCustom-made in width and lenght
    FinishedBlack Oxide
    ApplicationBalustrade , Facade Cladding , Animal Enclosure , Aviary Netting

    Material of Stainless Steel 304,316,306L etc.

    SS304(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
    SS316(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
    SS316L(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0


    Black Oxide Wire Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; Black Oxide Wire Rope Mesh is custom manufactured to suit your balustrade, railing or architecture application ; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ; Diagonal and irregular shapes can also be supplied.

    Wire Rope Mesh by Yuntong made from stainless steel wires, and has skin-like characteristics.
    It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.

    Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND – the mesh can even stand up to heavy loads.

    Black Oxidation Stainless Steel Cable Netting Wire Mesh Flexible Woven TypeBlack Oxidation Stainless Steel Cable Netting Wire Mesh Flexible Woven Type
