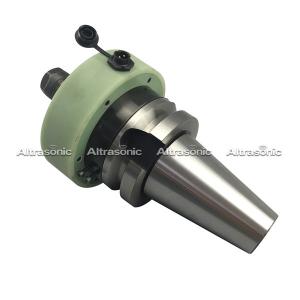

High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling

    Buy cheap High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling from wholesalers

    Buy cheap High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling from wholesalers
    • Buy cheap High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling from wholesalers
    • Buy cheap High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling from wholesalers
    • Buy cheap High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling from wholesalers

    High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-M2010
    Certification : CE
    Payment Terms : T/T, Western Union
    Supply Ability : 200 sets per month
    • Product Details
    • Company Profile

    High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling


    High Speed 20K Ultrasonic Assisted Machining of BT30 tool holder for Milling


    Introduction:


    Ultrasonic milling is a non-traditional, loose abrasive machining process. In this the mirror image of a shaped tool can be created in hard, brittle materials. Material removal is achieved by the direct and indirect hammering of abrasive particles against a workpiece.

    The shape of the tool holder is cylindrical or conical, or a modified cone which helps in magnifying the tool tip vibrations. In order to reduce the fatigue failures, it should be free from nicks, scratches and tool marks and polished smooth.

    Low carbon steels and stainless steels give good performance. v Tools are usually 25 mm long ; its size is equal to the hole size minus twice the size of abrasives. Mass of tool should be minimum possible so that it does not absorb the ultrasonic energy.


    Parameters:


    Frequency20 Khz/40Khz
    Output Power500 W / 1000W
    Voltage220 V / 11OV
    SwitchHandle or foot switch
    Power AdjustingStep or continuous
    Working Time Control24 Hours
    Weight30 KG
    ApplicationUltrasonic Milling

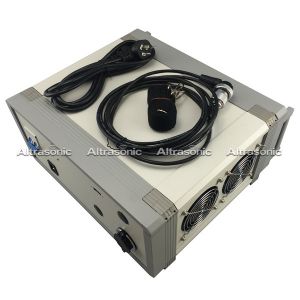

    GeneratorDigital Generator
    Length of cable5M

    Application:


    Hard materials

    Processing plane, groove, all kinds of form surface

    Processing spline, gear and thread

    Processing special surface of mould

    Echanical equipment transformation industry


    Advantage:


    1. Excellent harden and brittle materials machining solutions;

    2. Outstanding surface quality;

    3. Lower cutting resistance and thermal deformation;

    4. Less material damage and rim fragments;

    5. Higher efficient machining mode;

    7. Smaller micro-drilling hole.

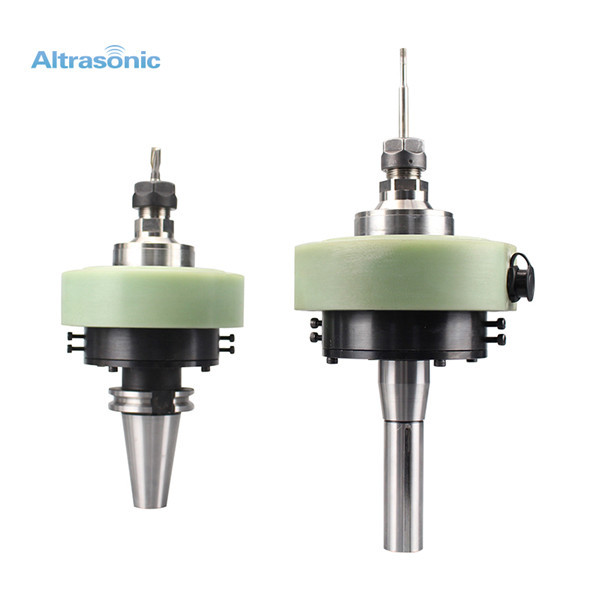

    Quality High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling for sale
