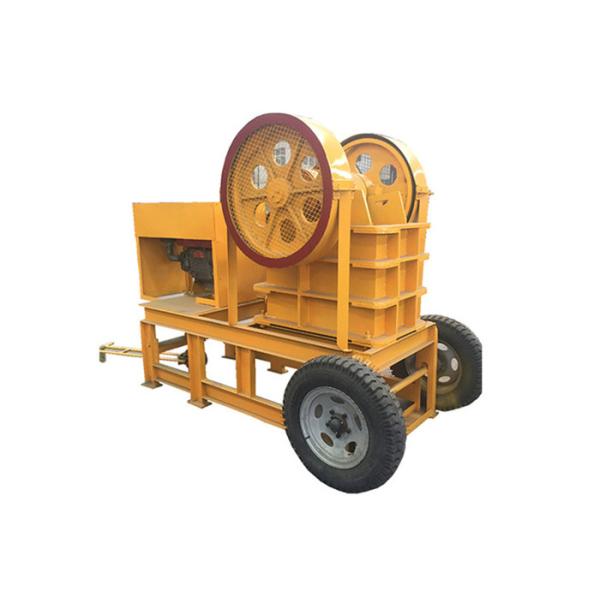

    Small Portable Rock Crusher Primary Mobile Jaw Crusher Diesel Engine Type

    Ask Lasest Price
    Brand Name : yk
    Model Number : 150x250
    Certification : iso9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : Within 30 days after receipt of the equipment's deposit
    • Product Details
    • Company Profile

    Small Portable Rock Crusher Primary Mobile Jaw Crusher Diesel Engine Type

    Small Portable Rock Crushers Primary Mobile Jaw Crusher, Mini Mobile Jaw Crusher Price, Diesel Engine Type Jaw Crusher


    Product Description

    Jaw crusher is widely used in primary crushing of material. It processes various kinds of material with crushing compression strength not more than 320mp. It has various advantages: firm structure, stable performance, large capacity, even producing granularity, convenient maintenance and economical running expense. It has been widely applied in area of mining, construction material, smelting, railway, high grade road surface, water conservancy, etc.



    Working Principle

    The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet.



    Advantages

    1. High efficiency and low operation cost

    2. Flexible capacity

    3. Simple structure and easy to operate

    4. Over loading protection

    5. Easy replacement of wearing parts
    6. Long service life
    7. High reliability
    8. Wide ranges of choices
    9. Alternative ordinary and hydraulic types



    Main Features
    1.Easy to transport and install
    This serie jaw crusher is easy to transport and install, which can be pulled behind pickup truck. It is the perfect crusher choice for the contractors who need to travel a lot.

    2.Diesel engine installed
    This serie jaw crusher comes with an diesel engine installed. Combining engine with crusher saves your time and money, it shortens your transportation time, fuel costs and the total cost of your operation, due to the cost of the engine is included with the crusher.

    3.Adjustable size of final products
    This serie jaw crusher can crush material down to sizes ranging from 5 to 10 mm. The wide range of output sizes can create crushed rock for a variety of applications, from aggregate production to ore processing.

    4.Designed and produced by own factory
    This serie jaw crusher has been designed and produced by our own factory. It has been years in the making, and crafted with the highest care and foresight. This serie jaw crusher is the most efficient crusher for small scale crushing projects.


    Technical Parameters

    ModelFeed open
    (mm)
    Max.feed size (mm)Discharge size range
    (mm)
    Capacity
    (t/h)
    Rotation speed
    (r/min)
    Power
    (kw)
    Weight
    (t)
    Overall size
    (mm)
    PEF-150×250150×25012510-401-32505.50.8720×660×850
    PEF-200×300200×30018015-502-62607.51.2910×750×990
    PEF-200×350200×35018018-703-10260111.51000×870×990
    PEF-250×400250×40021020-605-20300152.81300×1090×1270
    PEX-150×750150×75012018-488-25320153.81200×1530×1060
    PEX-250×750250×75021025-6013-35330305.51380×1750×1540
