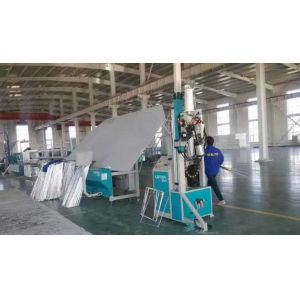

Automatic warm spacer bending machine LJZW 2020
Automatic aluminum frame bending machine is used to make special
equipment for trough aluminum insulating glass, which replaces the
original traditional production process, that is, the aluminum
frame four edge pin assembly method. This equipment can complete a
single aluminum strip to produce a variety of convex polygon
aluminum frame, so as to enhance the strength of the aluminum
frame, insulating glass sealing effect better, longer life.Main
Performance features:Except start-stop operation, all operations
are completed on the touch screen. Chinese operation interface,
easy to operate, natural, simple and easy to understand.4
specifications, 32 sizes (8 for each size) of glass raw sheet size
data can be set, and the number of aluminum frames of each size can
be set to 9999 pieces in one continuous processing. According to
each size of the equipment automatically calculate aluminum frame
data, sort, continuous processing, efficiency and speed greatly
improved.
Adopt CNC servo feeding system, aluminum frame size adjustable
precision of 0.1mm/m
Adopt CNC bending Angle control system, adjustable precision 0.1 °
Tailless design, in addition to the loss of the cut, can realize
the machining of the spare parts

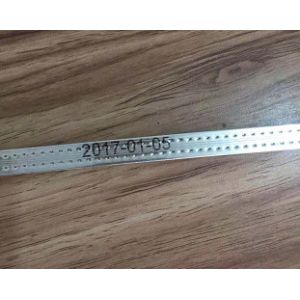

Four automatic storage tanks can store 4 kinds of aluminum bar
materials of 4-6 meters in length
It has the function of high-speed automatic continuous feeding of
aluminum bar, suitable for ordinary aluminum frame (including
domestic extruded aluminum bar) processing ordinary straight Angle
aluminum frame, and still has the function of feed head extension
uick repair adjustment panel design
Optional installation of curved curved aluminum frame, shaped frame
function
Output technology function, intelligent error correction prompt
Main technical parameters:
Aluminum bar bending specification thickness 5.5mm-24mm
Length is 4000 mm - 6000 mm
The size of processed aluminum frame min 250*100mm MAX2000 *2000mm
Larger processing speed < 30 s/piece (1000*1000mm)
Processing database 4 groups of 8 sizes 9999 pieces
Machining precision Aluminum frame size error ±0.5mm Angle error
±1°
Power supply and power AC220V,50AHz/ 2.5KW
Air source requirement: 0.65mpa
The external dimension is 10500*2200*2600mm
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
