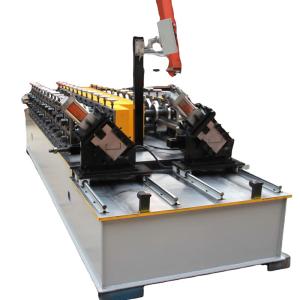

    Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

    Ask Lasest Price
    Model Number : Tile Forming Machine
    Certification : ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sets / month
    Delivery Time : 10-15 working days
    Brand Name : WADJAY
    • Product Details
    • Company Profile

    Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

    Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles


    Product Description

    C and U shape Roll Making Line Light Steel Stud Frame Form Machine

    Voltage:as the clients requirement
    Certification:CE ISO BV
    Warranty:3 years
    Core Components:Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, PLC
    color:Any color
    control system:PLC

    1.The chart of process flow:
    Decoiling--active feeding---forming---measuring lengh---punching---cutting---product to stand


    2.Main equipment:
    Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

    3.Technical parameters
    1)Profile
    thickness:0.3--0.8mm or 1--2mm
    2)inner tight decoiler
    A.coil inner diameter:350mm--450mm
    B.max width of coiling:400mm
    C.max weight of loading:5000kg

    3)main forming machine
    A.Shaft material:45# steel,bearing steel outer diameter 85mm
    B.Main motor power:5.5kw
    C.Forming speed:25m/min
    D.Voltage:380v,50hz
    E.Roller station:15

    4)cutting system

    A.hydraulic cutter

    B.Blade and mould material:Cr12 steel with quenched treated 60-62°

    C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no


    5)control system

    A.PLC: taida form Taiwan

    B.Coder:from south korea


    6)hydraulic system

    A.advanced hydraulic system
    B.Power:3kw

    Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles
