    Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application

    Ask Lasest Price
    Brand Name : GBS
    Model Number : GBS-JYBD
    Certification : ISO
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 1200mts
    Delivery Time : 4-5 weeks
    • Product Details
    • Company Profile

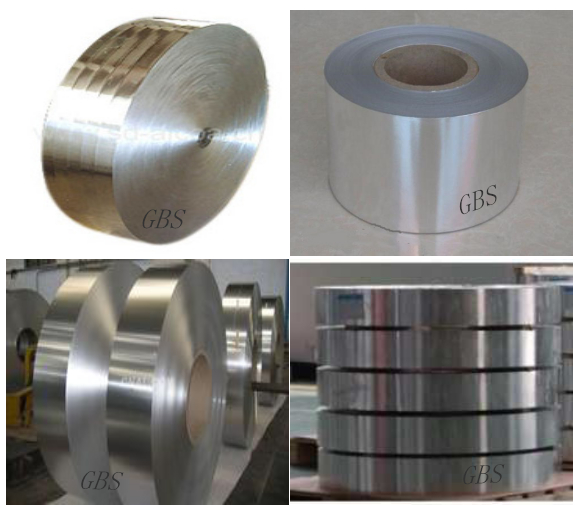

    Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application


    AA1050 Aluminium strip for transformer


    Aluminium strip for transformer winding 1050-O



    (1)Chemical Composition

    SiFeCuMnMgCrZnTiOthersAl.
    IndividualTotal
    Max. 0.25Max.
    0.40
    Max.
    0.05
    Max.
    0.05
    Max.
    0.05
    Max.
    0.05
    Max.
    0.03
    Max.
    0.03
    Min. 99.50


    (2)Mechanical properties and electric conductivity

    Thickness(mm)Tensile Strength(Mpa)Elongation
    %
    Bending 180 buckling inside radiusElectric conductivity at 20
    Over 0.3 to 0.5Min. 60 Max. 9020 min.Close contact62.5 min.
    Over 0.5 to 0.825 min.
    Over 0.8 to 1.330 min.
    Over 1.3 to 2.035 min.
    Over 2.0 to 2.535 min


    (3)Application :transformer strip for transformer winding 1050 can be used for variable transformer like low or high voltage transformer winding,etc.
    transfer strip for electrical coil application ranges from 0.3mm to 2.5mm, the alloy 1050(99.50% aluminum) can be used to meet the minimum industry requirements for strip conductor, is closely controlled to assure smooth, substantially burr-free edges and strip-size availabilities are in capacities exactly equivalent to those of standard copper wire sizes.
