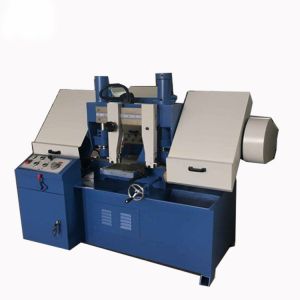

GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw

    Buy cheap GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw from wholesalers

    Buy cheap GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw from wholesalers
    • Buy cheap GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw from wholesalers
    • Buy cheap GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw from wholesalers

    GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw

    Ask Lasest Price
    Model Number : GW4235
    Certification : ISO/CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/months
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw


    GW4228 Precision Grinding Machine Semi Automatic Aluminium Cutting Band Saw



    For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

    1. solid steel saw frame within a dual-column frame guide
    2. flat and low profile for easier handling of heavy or large workpieces
    3. manual linear stop for quick and easy setting of the correct workpiece length
    4. powerful drive motor
    5. the torsion-proof saw frame features an infinitely adjustable feed
    6. at the end of the sawing cycle, the saw blade belt will stop and the saw blade
    7. will automatically return to the home position
    8. hydraulic workpiece clamping included

    ModelGW4228GW4230GW4235GW4240GW4250
    Max.sawing range(mm)280-280X280300-300*300350-350*350400-400*400500-500*500
    Blade size(mm)3505X27X0.93705*27*0.94115*34*1.15000×41×1.35450*41*1.3 mm
    Blade speed (mm/min)27,45,6927,45,6927,45,6927,45,6927,45,69
    Working clamping methodHydraulicHydraulicHydraulicHydraulicHydraulic
    Main motor power(kw)2.22.234kw5.5KW
    Hydraulic motor power(kw)0.550.750.750.75kw1.5 KW
    Cooling pump power(kw)0.040.040.040.09kw0.125KW
    Feed speed adjustment modeHydraulicHydraulicHydraulicHydraulicHydraulic
    Workbench height (mm)300300300300mm300MM
    Main drive structureWorm gearWorm gearWorm gearWorm gearWorm gear
    Tensioning method of band sawManualManualManualManualManual
    clamping systemHydraulic pressureHydraulic pressureHydraulic pressureHydraulic pressureHydraulic pressure
    Cleaning of band sawWire brushWire brushWire brushWire brushWire brush
    and chip coolantand chip coolantand chip coolantand chip coolantand chip coolant
    Overall dimension(mm)1860*1000*14001860*1000*14002000*1100*15002500*1300*16002800*1800*2100
    Packing size(mm)1910*1050*15501910*1050X15502050*1150*16502550*1350*17502850*1850*2250
    N.W(kg)650700100014002600


    Q1: How to install?
    A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.


    Q2: How to ensure the safety?
    A2:There have the overload and over heat protection, it ensure working people safety.


    Q3: How long the table saw machine can be used?
    A3: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.


    Q4:what is the Delivery time?
    A4: Our delivery time is around 30 days. Before the machine arrive at the port, the shipping company will call you.


    Q5: Are there any requirements for the dealer?
    A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
