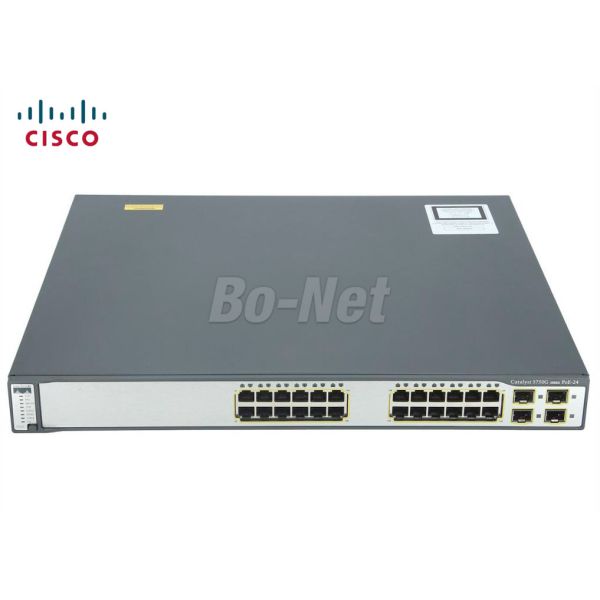

| WS-C3750G-24PS-E data sheet |
|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750G-24PS-E |
| Product Type | Managed, Stackable 24 ports L3 Switch |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density - Uplinks | 24 x 10/100/1000 Ethernet Ports + 4 x SFP |
| Power Over Ethernet (PoE) | Yes |
| Performance | Switching capacity : 32 Gbps
Forwarding performance : 38.7 mpps |
| MAC Address Table Size | 12K entries |
| Jumbo Frame Support | Yes |
| Max Number of Stacks | 9 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c,
SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad
(LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| DRAM Memory | 128 MB |
| Flash Memory | 32 MB Flash |
| LED Status Lights Indicators | Link activity, port transmission speed, port duplex mode, bandwidth
utilization %, system, RPS (Redundant Power Supply) |
| Connectivity / Expansion Slots |
|---|
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
1 x console - RJ-45 - management
Network stack device : 1 x x 2
4 x SFP (mini-GBIC) |
| Power Supply Specifications |
|---|
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 540 Watt |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous |
|---|
| Width | 44.5 cm |
| Depth | 37.8 cm |
| Height | 4.4 cm |
| Weight | 6.1 kg |
| MTBF | 182,373 hour(s) |
