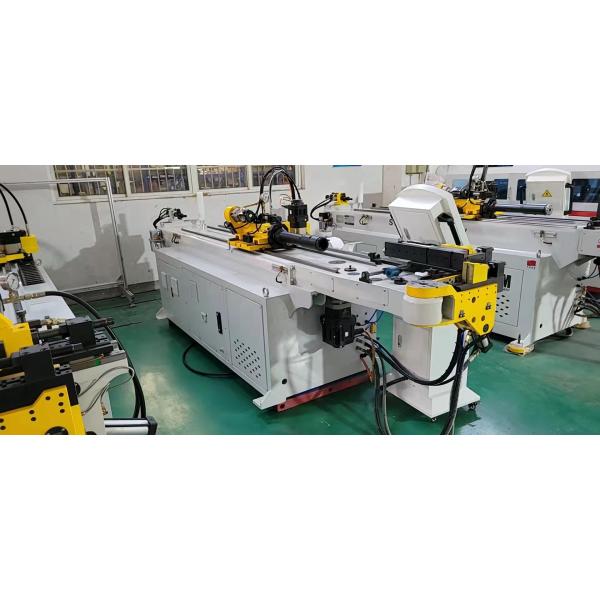

CNC32RES Tube bender
It is a CNC automatic pipe bending machine, which is equipped with
a full-featured device for bending three-dimensional space pipe
fittings. The input program is automatically completed during the
entire bending process. The machine has the characteristics of
convenient operation, stable performance, high work efficiency and
high safety factor. It is an ideal equipment for the pipe fitting
processing industry.
machine characteristics | | main technical parameter | |
| (1) Electical servo bending | Max capacity | round tube/iron tube ( S=40kgf/mm ) | 30x2.0t |
| (2) Imported servo motor and reducer | Round tube/non iron metal tube ( S=25kgf/mm ) | 25x3.5t |
| (3) Independent R & D software system | Round tube /stainless steel tube ( S=60kgf/mm ) | 28.6x1.3t |
| (4) 1-6layer die optional | Square tube/Metal Tube ( S=40kgf/mm ) | 25.4x25.4x1.5t |
| (5) 11 axis full motor type optional | Round bar ( S=40kgf/mm ) | 12 |
| Servo bending axis | precision | 0.05 |
| max speed | 180°/sec |
| Servo material feeding axis | precision | 0.05mm |
| max speed | 1200mm/sec |
| Servo tube rotate axis | precision | 0.05 |
| max speed | 300°/sec |
Machine characteristics:
1, Automatic tube bending machine workstation, Tube forming in one
time .
2, Reduce labor ,saving labor cost.
3, Two automatic feeding machines each feed the tube bender
automatically, and a robot loads and palletizes the two tube
benders at the same time.
4, The whole process all is controlled by PLC , with touch screen
man-machine interface, the efficiency is improved wholely
5, Automatic Identification of tube welds to make tube Bend Machine
avoid Weld seam
6, Use Industrial Robot for loading and unloading stacking
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness
equipment,furniture,outdoor equipment,air conditioner,food
machinery,nulcear tube such as reactor,evaporator and heat
exchanger
Machine main features:
| 1, Using the microcomputer control, automatic bending; |
| 2, Safety:the emergengcy stop button on the bending arm; |
| 3, Dialogue operation, easy to study and understand; |
| 4, Partition hypothesis speed, high pipe-bending precision up to
±0.05°; |
| 5, 16 groups pipe-bending information storage, all angles work
forms a coherent whole; |
| 6, The mandrel automatically in and out, saving much time; |
| 7, Suitable for bending steel pipe, stainless steel pipe, copper
pipe, aluminum pipe, etc; |
| 8, Can install auxiliary push die, low returning-core function, can
bend thin pipes; |
| 9, Special fitting: special mold, anti-wrinkle board, auxiliary
push installation, etc. |
