EXPANDED METAL MESH, EXPANDED METAL SHEET

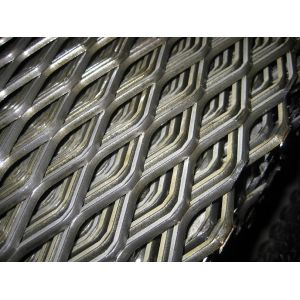

Stainless Steel expanded metal
Material
mild steel plate, aluminum, stainless steel plate, copper plate,
nickel plate, titanium plate
Thickness
0.5 mm – 3.0 mm
Hole Shape
diamond,square hole,scale hole, hexagonal etc.
Colors
white, red, yellow, blue, purple, orange, green, black or as
requirements.
Surface treatment
electric galvanized, hot dipped galvanized,PVC coated,oxidation
treatment,etc
Application
engineering curtain wall, construction industry, isolation
network,decoration
Feature
expanded metal is a variety of metal plate punching stretching
expansion.Raw material plate processing into a network, the area
can be expanded several times, ten times, or even dozens of times.
| Specification List of Expanded Metal sheet |
| Sheet Thickness | Opening in Width | Opening in Length | Strand Width | Roll Width | Roll Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
LWD: diamond shaped hole, long way of the diagonal length
SWD: diamond shaped hole, short way of the diagonal length
Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire
stem length of the metal plate.
plate thickness: 0.4-8mm
