Fingerprint access control system automatic flap barrier gate

    Buy cheap Fingerprint access control system automatic flap barrier gate from wholesalers

    Buy cheap Fingerprint access control system automatic flap barrier gate from wholesalers
    • Buy cheap Fingerprint access control system automatic flap barrier gate from wholesalers

    Fingerprint access control system automatic flap barrier gate

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : TY502SV
    Certification : ISO,CE,RoHS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 50PCS/week
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

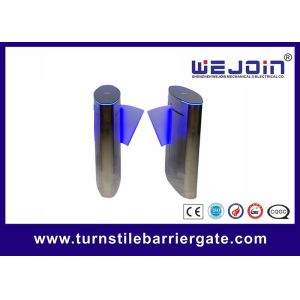

    Fingerprint access control system automatic flap barrier gate

    Fingerprint access control system automatic flap barrier gate

    Product Introduction
    Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.

    Flap Barrier Gate Quick Detail:

    • Material: 304 stainless steel

    • working temperature :-10°C~50°C

    • Function: automatic

    • Direction: bi-direction

    • Power supply :AC220V±15%, AC110V±15%

    • Motor voltage :DC12V (brush motor)


    Flap Barrier Gate Specifications

    Model

    WJTY502SV

    Cabinet dimension

    1200mm(L)×300mm(W)×1000mm(H)

    Stretching-out flap length

    280mm

    The max lane width

    660mm

    Cabinet material

    304 stainless steel

    Power supply

    AC220V±15%, AC110V±15%

    Motor voltage

    DC24V (servo motor)

    Access device input voltage

    dry contact or 12V electrical level signal or >100ms 12V impulse signal or driving current >10mA

    Max flow rate

    30~40 people per minute

    Flap opening/closing time

    1 sec

    reset time when power on

    3 sec

    protection grade

    IP32

    working environment

    outdoors (with shelter) and indoors.

    working temperature

    -10°C~50°C
