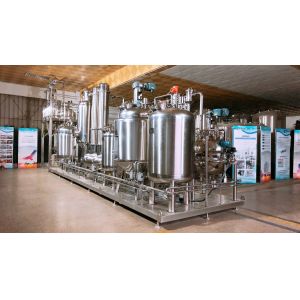

    Buy cheap Concentration Herb Extraction Equipment / Molecular Distillation Apparatus from wholesalers

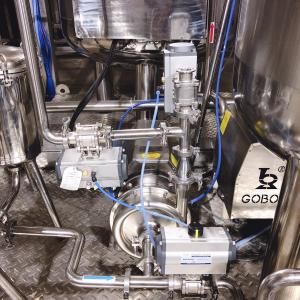

    • Buy cheap Concentration Herb Extraction Equipment / Molecular Distillation Apparatus from wholesalers
    • Buy cheap Concentration Herb Extraction Equipment / Molecular Distillation Apparatus from wholesalers

    Concentration Herb Extraction Equipment / Molecular Distillation Apparatus

    Ask Lasest Price
    Brand Name : LTPM China
    Model Number : LTN-Series
    Certification : CE
    Price : Negotiation
    Payment Terms : 30% TT as deposit and 70% before shipping
    Supply Ability : 25 sets/Month
    Delivery Time : In 30 days after receiving the deposit
    • Product Details
    • Company Profile

    Concentration Herb Extraction Equipment / Molecular Distillation Apparatus

    Sanitary Herb Extraction Equipment Plant Extraction Concentration Pilot Machine


    Application :

    This equipment is suitable for extracting and concentrating the effective component from Chinese herbals and other botanical.


    Feature:

    1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.
    2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
    3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
    4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.


    Main Technical Data:


    ManufacturerChina LTPM Group Co., LTD
    PN5L vacuum emulsifying mixer
    CapacityDesign volume: 6L, working capacity:5 L
    Kettle CoverLiquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp

    Mixing pot


    Material

    Inner layer: SUS316L thickness: 3mm
    Middle layer: SUS304 thickness: 2mm
    Outside layer: SUS304 thickness:2mm

    configuration

    Bottom material exhaust, size: 1.5”
    Temp. sensor (0-199℃)
    Electrical heating: 2kw, cooling water inlet

    Stirring system


    Homogenizer

    1.Material: SUS316L; standard homogenizer

    2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min

    Stirring scrap and middle stirringMaterial: SUS316L,Scrap material: PTFE

    1. Stirring scrap and middle stirring use the same motor

    2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control)

    3. Stirring scrap and middle stirring rotating the opposite direction

    Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
    Vacuum system

    1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz

    2. With pressure sensor (during vacuum condition, hydraulic can not open)

    Heating methodJacket electrical heating
    Exhaust methodElectric doom and bottom discharge or positive pressure discharge material
    PressurePressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
    Control boxSUS304 , 1.2mm thickness
    Dimension1400mm×600mm×1900~2400 mm
    Shelf is SS, platform with raised platform and SS guardrail
    Spare partsOne year spare parts and tools
    GuaranteeOne year
    Using lifeMore than 15 years


    Oil pot

    Design volume3.35L
    Working capacity2.7L
    Stirring power0.025kw
    Stirring speed1400 RPM
    Heating power1 Kw

    Water pot

    Design volume3.35L
    Working capacity2.7L
    Stirring power0.025kw
    Stirring speed1400 RPM
    Heating power1 Kw

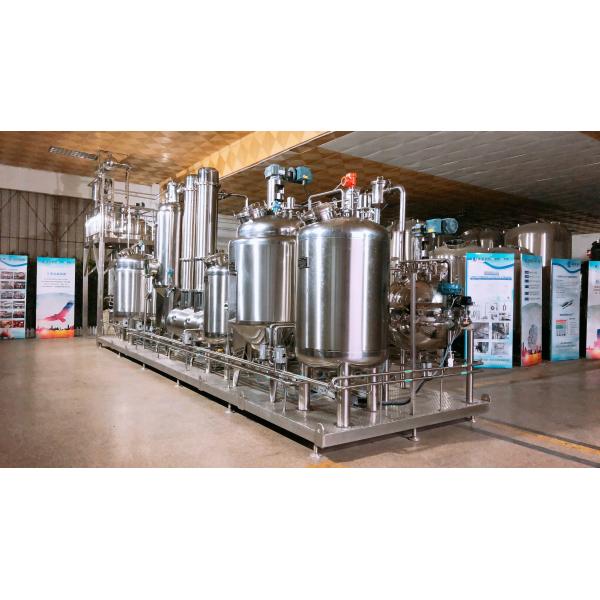

    Quality Concentration Herb Extraction Equipment / Molecular Distillation Apparatus for sale
