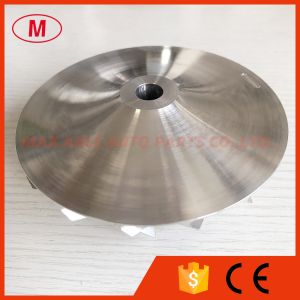

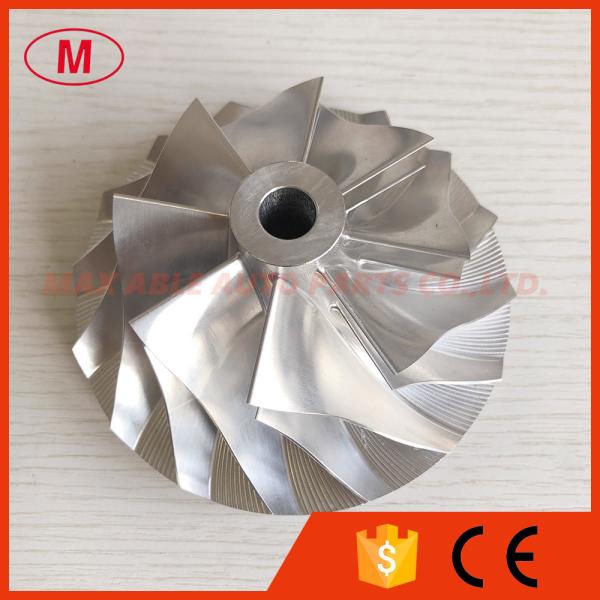

HX60 73.35/109.00mm 8+8 blades turbo milling/Aluminum 2618/billet compressor wheel

1. MODEL:HX60 forward

2. HX60 73.35/109.00mm 8+8 blades turbo milling/Aluminum 2618/billet compressor wheel

3.Size:

Nose Diameter:22.62mm

inducer:73.35mm

Exducer:109.00mm

Tip height:6.86mm

Superback:9.68mm

Overall height:54.14mm

Bore size:11.12mm

Trailing angle:60

Cutback:2.0

Blades height:39.18mm

8+8 BLADES

forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.We have many size.

All the compressor wheel have been balanced.
