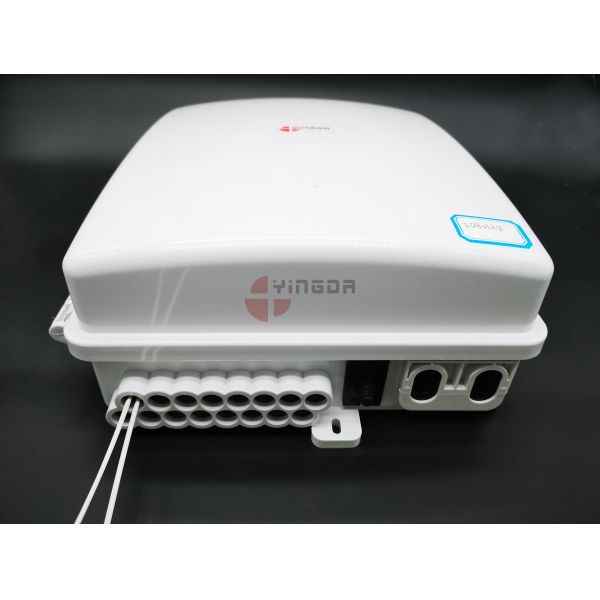

24 Port FTTH Box Pole Mount Waterproof IP65 With SC Adapters and
Pigtails
This terminal box is used for drop cable or soft cable in ftth
deployment, maximum can do 24 pcs subscribers,
it mix the function of fiber optic splitting, splicing,
distribution and fiber storage in one box.
Specification
| MODEL | FDB0324 |
| Dimension | 334mm(W)x295mm(D)x116mm(D) |
| Cable ports | 3 in, 32out |
| Cable diameter | In:14mm ; out:3*2mm drop cable |
| Max. Adapter | 24SC |
| Max. Splitter | 1x8, 1x16,1x24 PLC splitter steel tube or ABS module |
| Color | white |
| Capacity | 24cores single fiber |
| Material | PC |
| Waterproof grade | IP65 |
| Net weight | 2.45kg |
| Quantity / carton | 8 pcs |
| Gross weight / carton | 24.5kg |
| Carton size | 56*36*62cm |
Box Size: 334.18*295.38*116.81mm
Features
- Industry Standard User Interface, be made of high impact plastic.
- Can accommodate 1x8 & 1X16 &24 PLC splitter.
- Anti-UV, Ultra violet resistant and rainfall resistant.
- Up to 24 FTTH drops.
- Wall and pole mountable.
- 3 inlet ports, 24 outlet ports.
- Round shape, hinge design
Overview: complete with 24pcs S/APC pigtails and 24pcs SC/APC adapters
splice tray: upper -- distribution and splitting
lower -- fusion and fiber storage
Adapter plate: 24pcs SC adapter, you can install screws on flanges of the adapter
to make it more tight.
one side: 24pcs SC pigtails
the other side: SC mechanical fast connectors with drop cable
Cable port:
entry: 1 uncut part with 2ports, 1 rubber standby cable port, max.
diameter:14mm; there is cable fixtion.
exit: 16pcs rubber seal, each 2 flat drop cable 2*3mm ports, total
32pcs.
Bottom of the terminal box:
bottom of the box have space for cable entry winding, and ABS
splitter module fix, max. 1x16 splitter can be put here.
Application
- Widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Standard accessory
Heat shrink protection sleeve, buffer tube, nylon tie, label mark,
expansion screws, etc.
Optional accessory:
Pole mount ring, adapter, pigtails, splitter, etc.
