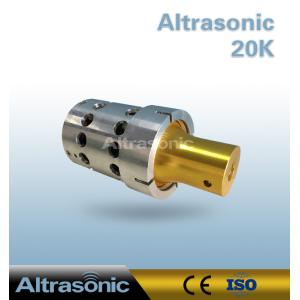

    Replacement Dukane Ultrasonic Welding Transducer For Ultrasonic Welding Machine

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-D110-3122
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union,paypel
    Supply Ability : 5000 pieces/month
    Delivery Time : 7 workdays
    • Product Details
    • Company Profile

    Replacement Dukane Ultrasonic Welding Transducer For Ultrasonic Welding Machine


    ultrasonic welding machine used replacement Dukane 20kHz ultrasonic transducer


    Specifications:


    ModelHSD20
    Frequency20 khz
    Output power2000 watt
    Joint bolt1/2-20UNF
    Ceramic disc Diameter50 mm
    Quantity of Ceramic discs2 pcs
    CapacitanceDifferent item No., with different capacitance
    Amplitude20 um
    Applicationwelding machine

    MODELFREQUENCY(KHz)Ca(pf)Power(W)Machine
    40219.6-20.07800-8500450-900BRANSON8400
    50219.6-20.011500-125002000BRANSON8800/5170
    CJ2019.4-19.719000-210001100-4000BRANSON2000 series
    CB35A15A36.5-37.53300-4000800Rinco-35A15A
    CV23138.3-39.03500-450090040K Metal welding
    CV351036.2-37.03200-4000800Rinco-CV3510
    110-312219.6~20.012500-140002600Dukane heavy duty

    Description:


    1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
    2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
    3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
    4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.

    Features: easy installation, stable and reliable, superior performance.

    Scope of application: mainly used for the welding of non-woven, bag making machine, zipper, finalize the design


    Applications:


    Our transducer can applied in the following ultrasonic machines:


    Ultrasonic welding machine

    All material with thermoplasticity can use Ultrasonic welding machine ,

    it can welding the material more easy and stable.Such like plastic, fabric,ABS, nonwovens.

    Ultrasonic cutting machine

    Ultrasonic food cutting is popular because the perfect edge.

    Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same time.

    Ultrasonic sewing machineUltrasonic sewing can sewing the material without any cotton, and keep longer time.

    Competitive Advantage:


    Service: Timely feedback; Free design; 1 year Warranty.

    Quality: Full testing before shipping; we reputation from customer.


    Packing


    1)Seaworthy pack: Bubble pack+stretch films+wood frame with marks of product information

    2)Packing method can be also changed according to the clients' special requirement

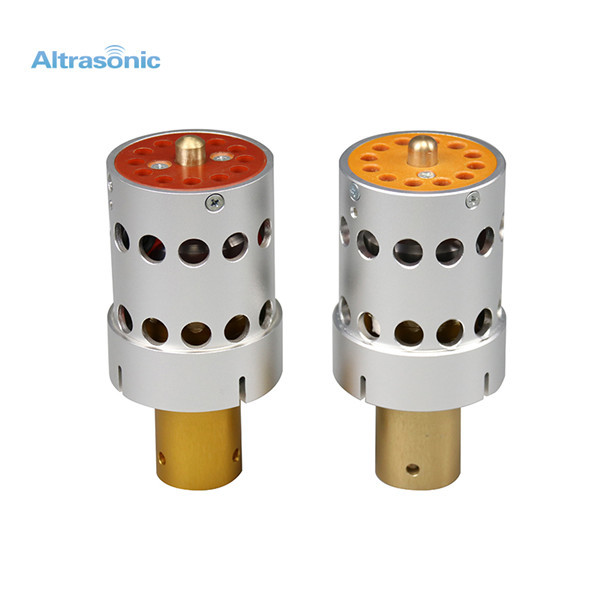

    Quality Replacement Dukane Ultrasonic Welding Transducer For Ultrasonic Welding Machine for sale
