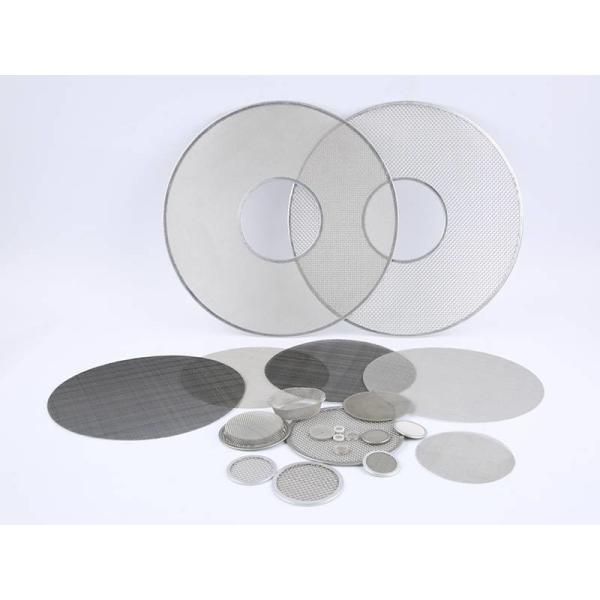

High Strength Stainless Steel Filter Mesh Disc Plain / Twill / Dutch Weave Style

Filter disc with different material,black steel,stainless steel or iron

Disc filters, oil filters, the chemical fiber assembly, filter, etc., are combined and after the package edge processing is made by different mesh metal net and a support net. Applicable to various types of filter press oil filter, filter for marine diesel engine oil system and other equipment, as well as synthetic fibers and man-made fiber textile chemical fiber industry with the front side of the various models of spinning nozzle and other similar conditions, textile dope impurities filtered.
Filter Model:
Model filter size
ID OD
SPL15 20 40
SPL25 30 65
SPL32 30 65
SPL40 45 90
SPL50 60 125
SPL65 60 125
SPL80 70 155
SPL100 70 155
SPL125 90 175
SPL150 90 175
SPL200 90 175
Technical parameters:
1. Applicable nominal diameter :15-200mm
2 Flow :2-320L / min
Filtration accuracy :5-400um
Material: phosphor bronze wire, stainless steel smooth mesh, twill mesh, I-Net
5 maximum operating temperature: 95 °C
6. Maximum working pressure: 0.8Mpa
Performance features:
1 made of wire mesh filter
2 has a high strength, the ability to pass oil
3 can be reused
4. Reliable filter for easy cleaning and features
Application of occasions:
Filter, filter press, ship, diesel engine oil system applicable to various types of thin oil lubrication device filtering
The chemical fiber industry, synthetic fibers and man-made fiber textile various models of spinning nozzle front side and other similar conditions, textile dope impurity filter, used in petroleum, electric power, chemical industry, metallurgy and other industrial fields to enhance oil cleanliness.

Woven type of stainless steel filter disc

Details sheet:

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

Anping tenglu tenglu metal wire mesh co.,ltd.is a leading supplier of stainless steel wire mesh product,our product cover stainless steel woven wire mesh,welded wire mesh,crimped wire mesh,hexagonal wire mesh,expanded wire mesh,window screen,chain link fence,gabion,sieve.

Our company pay attention to trade development,have imported advanced woven machines from Europe to improve production efficiency and multiple product range,most of our products are exported to Europe,United States and south east Asia.

Stainless steel woven wire mesh is widly used in mining, petroleum, chemical industry, food industry , pharmaceutical industry and sifting and screening mesh in chemical and chemical fiber industry.

We have successfully cooperated with lot large scale multinational corportation from South Africa and Europe,after 15 years of company development,we are already becomes one of leading wire mesh manufacture in China.

Our mission is"Quality first,service paramount",we welcome people from All works of life who need our product consult and send enquiries.

Following is our product feature and applications,
