TEREX 15252682 PTO ASSEMBLY for terex tr45 truck parts
Terre Kosen Mine Equipment Co., Ltd specializes in supplying TEREX
truck parts,marketing global.offering the highest quality parts
with competitive price.
Established in 2009, We have been manufacturing/exporting
high-quality parts at low costs to companies world-wide,Following
strict I.S.O guidelines and control quality process.
Large amount parts are in stock make the parts lead-time
shorter.Rich export experience make you import parts easier and
faster.
Terex dump truck parts for
3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex haul truck for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex off-highway for dump truck
3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex end dumper for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex parts for quarry
Terex earthmoving equipment parts

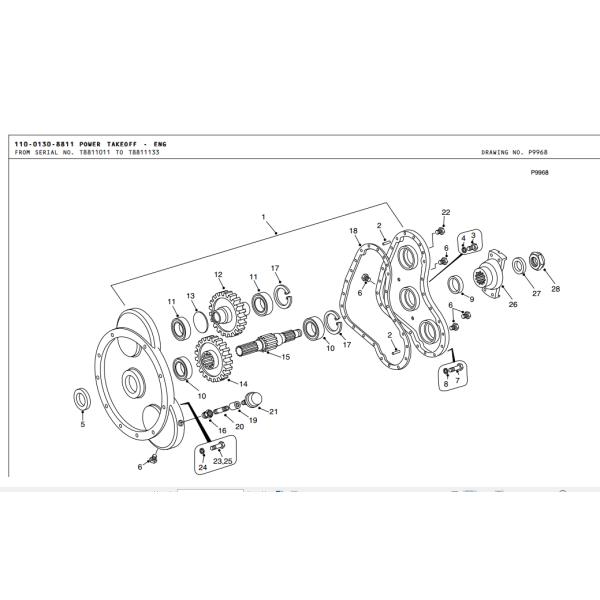

110-0130-8811 POWER TAKEOFF - ENG
| FROM SERIAL NO. T8811011 TO T8811133 |
SER.NO. SER.NO.
NC REF QTY PART NO. DESCRIPTION FROM TO |
000 001 15252682 PTO ASSEMBLY
001 001 09060235 .HOUSING ASSY-MACHD
002 002 00784079 ..PIN
003 002 00454864 ..BOLT
004 002 00103320 ..LOCKWASHER
005 001 09004541 .SEAL
006 004 00444637 .PLUG (0.75IN)
007 017 00179826 .BOLT
008 017 00103320 .LOCKWASHER
009 001 09004540 .SEAL
010 002 00954528 .BEARING
011 002 00907696 .BEARING
012 001 09274893 .GEAR-DRIVEN
013 001 00444692 .PLUG
014 001 09195847 .GEAR-DRIVE
015 001 15252439 .SHAFT-DRIVE PTO
016 001 00144218 .BUSHING
017 002 09414895 .RING-SNAP
018 001 09195842 .GASKET
019 001 00187396 .COUPLING
020 001 15247042 .BREATHER ASSY
021 001 06750967 .CAP-BREATHER
022 001 00444698 .PLUG
023 006 00179860 BOLT
024 010 00103328 LOCKWASHER
025 004 00433142 BOLT
026 001 15300856 YOKE-PTO
027 001 09071870 WASHER
028 001 09269703 NUT |
